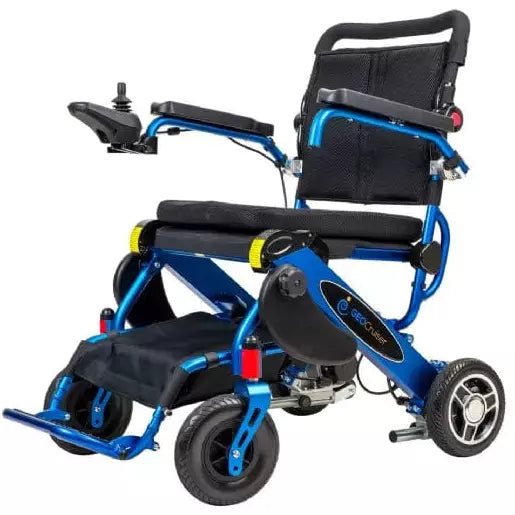

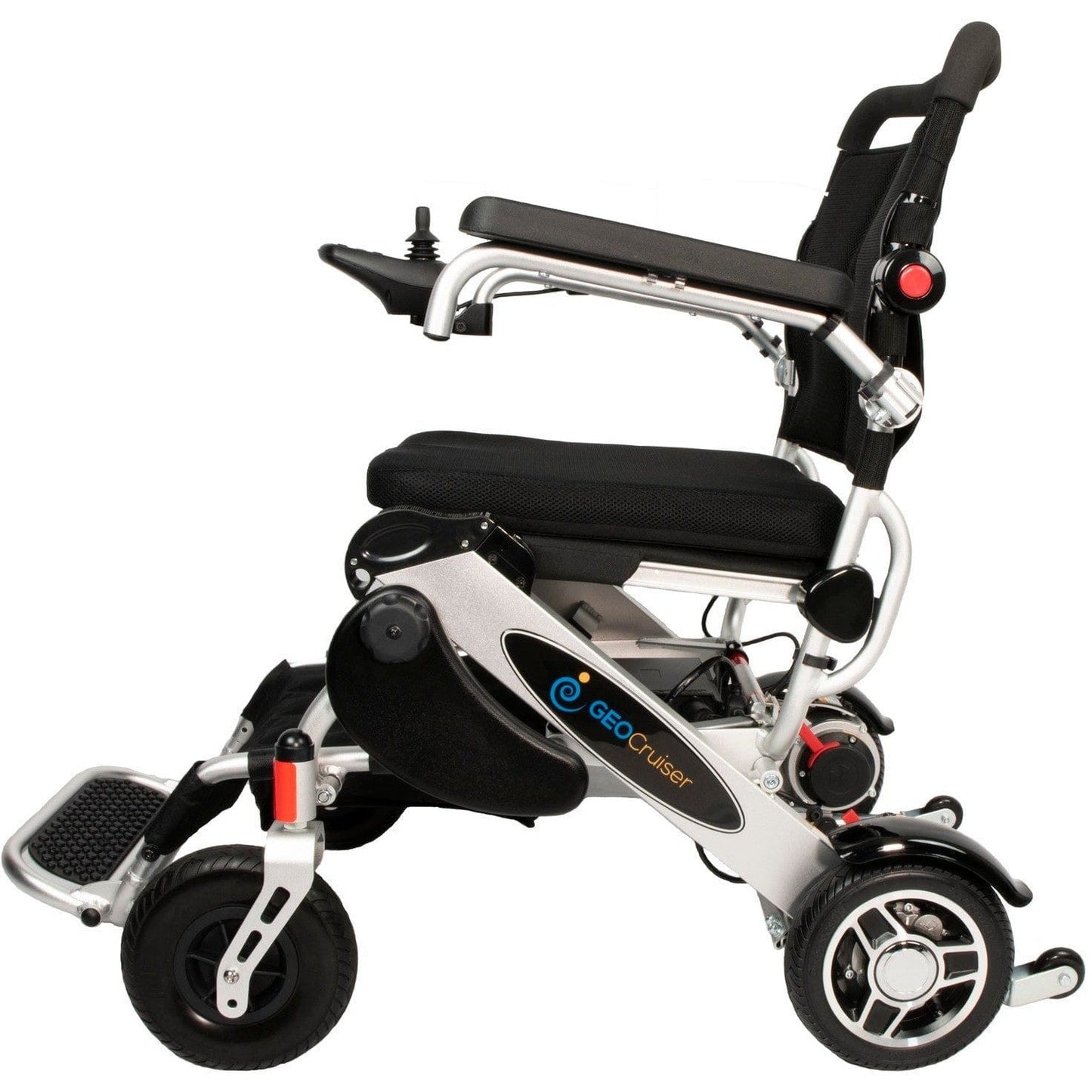

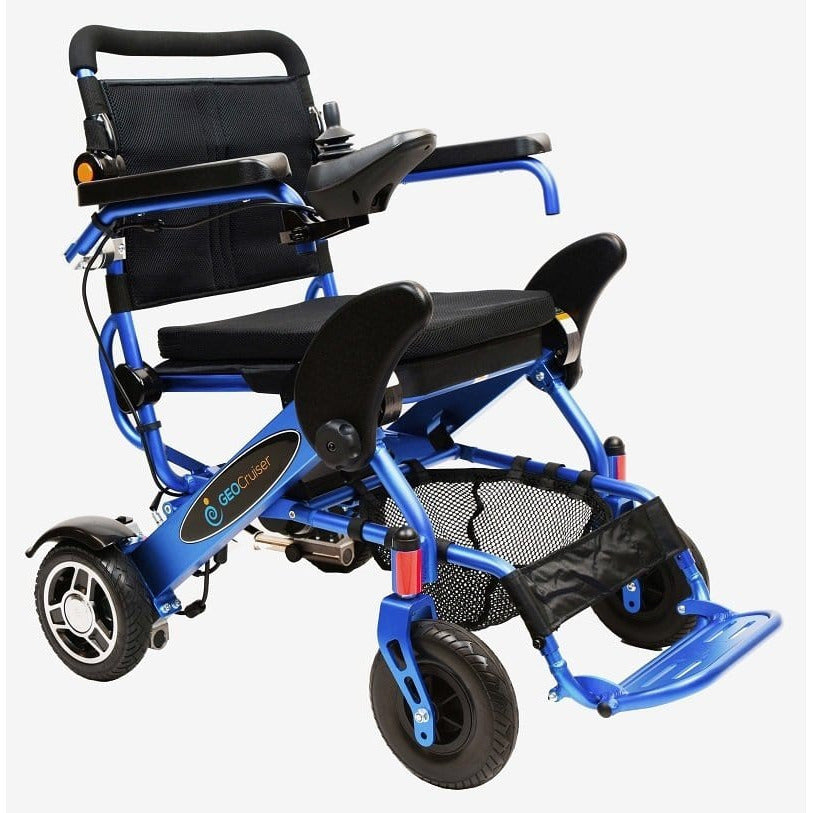

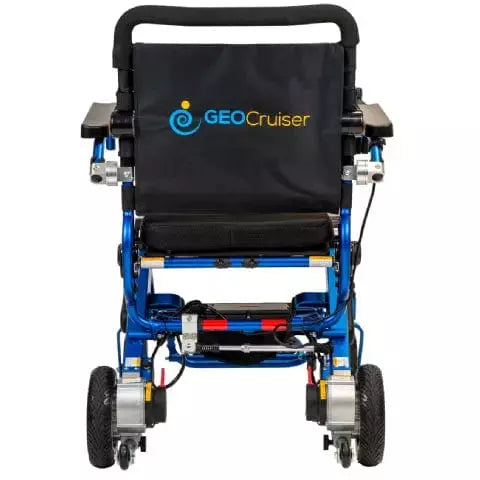

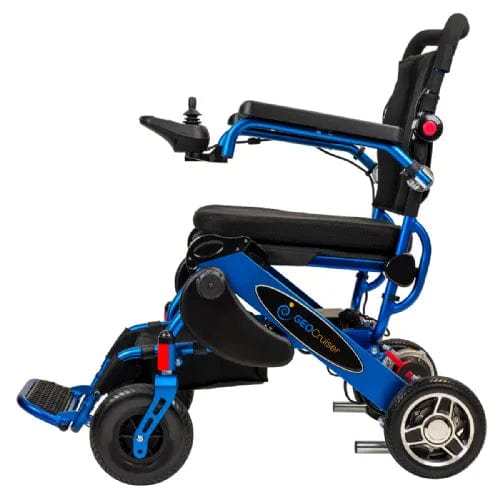

About the Geo Cruiser LX
Now you can do more with the Geo Cruiser LX lightweight foldable electric wheelchair. Attend family gatherings, go shopping, visit museums, fairs, and other social events with the confidence that you will be able to enjoy yourself by gaining more independence with your mobility.

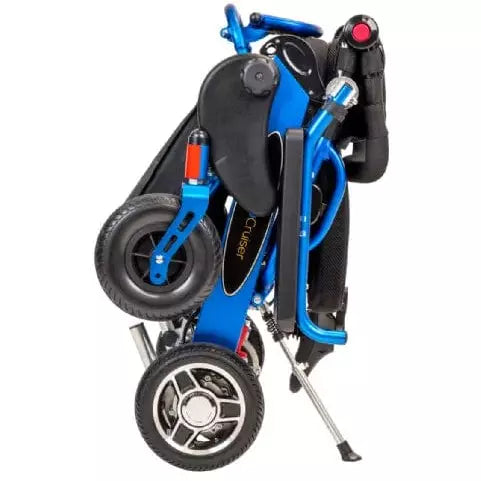

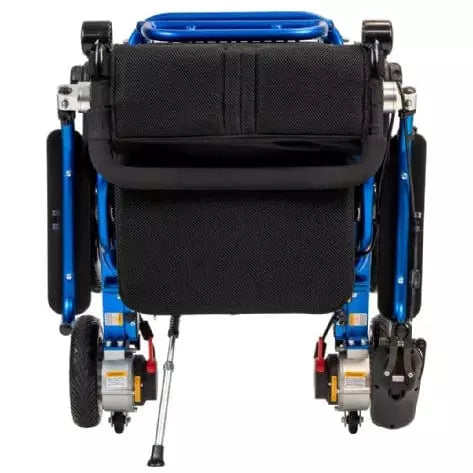

The Geo Cruiser Wheelchair is FDA cleared and allows you to get around easily and safely. It only weighs 53 lbs without battery and 59 lbs with battery. Its patented design allows the LX to be folded and unfolded in seconds.

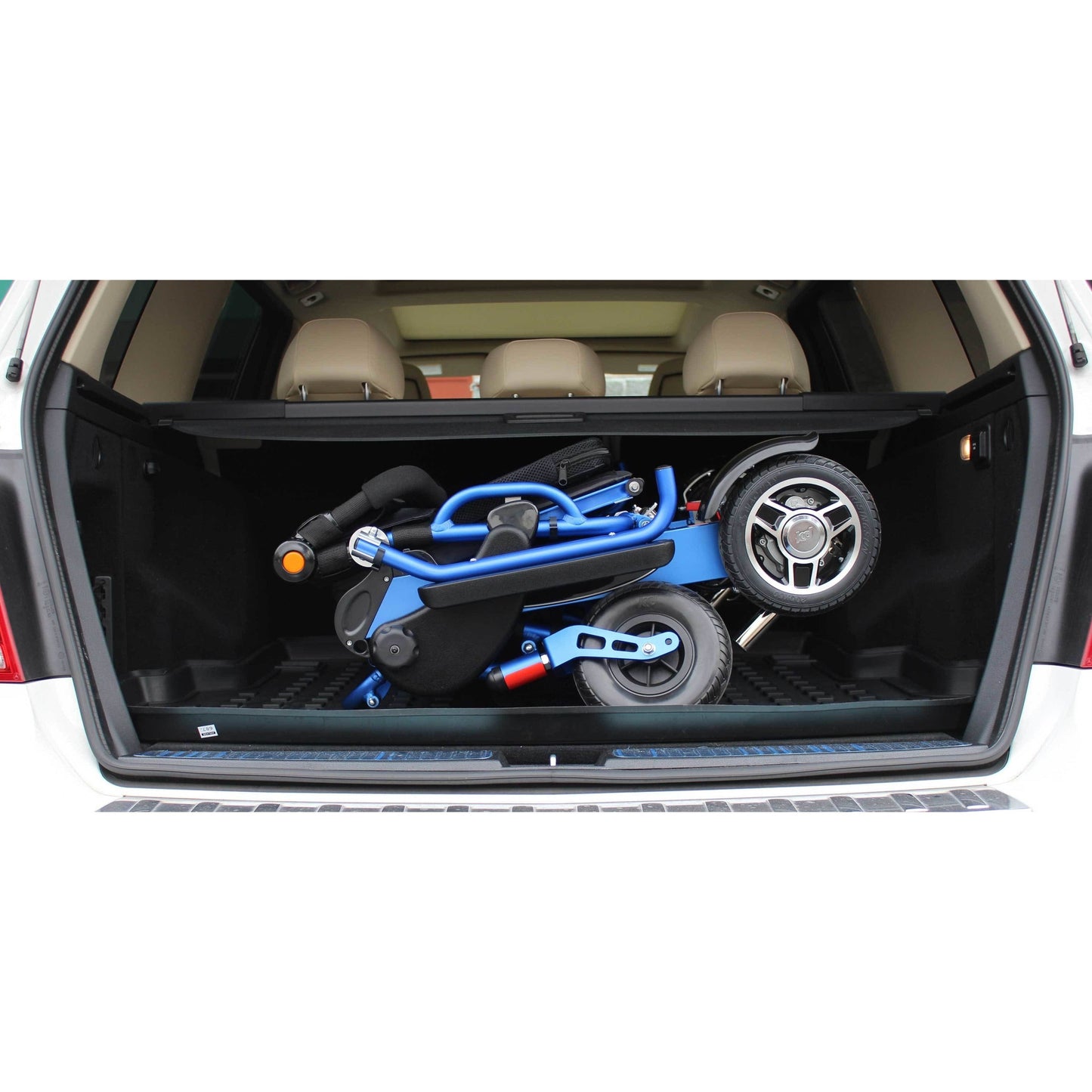

It's compact and portable enabling easy transport in the trunk or hatchback of most vehicles, as well as an SUV, van, bus, train, or boat. Furthermore, the battery meets government regulations for safe air travel, and in most cases, you can ride the Geo Cruiser directly to the boarding terminal.
The LX is our mid model with support for up to 330 lbs. It has a higher backrest and more room between the armrests than the DX. It features an adjustable four-position backrest, three-position footrest, and right and left adjustable leg guards. The Geo Cruiser LX is easy to set up and only requires you to connect the "Quick-Release" joystick, and you’re ready to go.
Features and Benefits
• Lightweight and compact design
• Folds and unfolds in seconds
• Supports up to 330 lbs
• Stable and durable design
• FDA Clearance for safety
• Up to 15 miles driving range
• Fits in the trunk of a car, or a Van, truck, bus or train
• Travel Ready - Airline and Cruise approved
• Adjustable backrest and footrest
• Advanced Lithium-ion batteries
• Quick-Release Joystick for Right or Left arm position
• Easy to park with kickstand
• Fits through standard home/business doorways
• Armrests can be raised for easy side access
• Removable seat covers for easy cleaning
• Beautiful anodized paint finish
• Requires very little service & maintenance
• Free Under-Seat Basket
Specs
Product Weight: 59 lbs. with batteries / 53 lbs. without batteries
Weight Capacity: 330 lbs.
Turn Radius: 34.5"
Travel Distance: Up to 15 Miles
Maximum Speed (Adjustable): Up to 4 MPH
Ground Clearance (Footrest to Ground): 3.25"
Incline/Slope Capability: 20% Slope (12 Degrees)
Unfolded Size (L x W x H): 37" x 26.75" x 36"

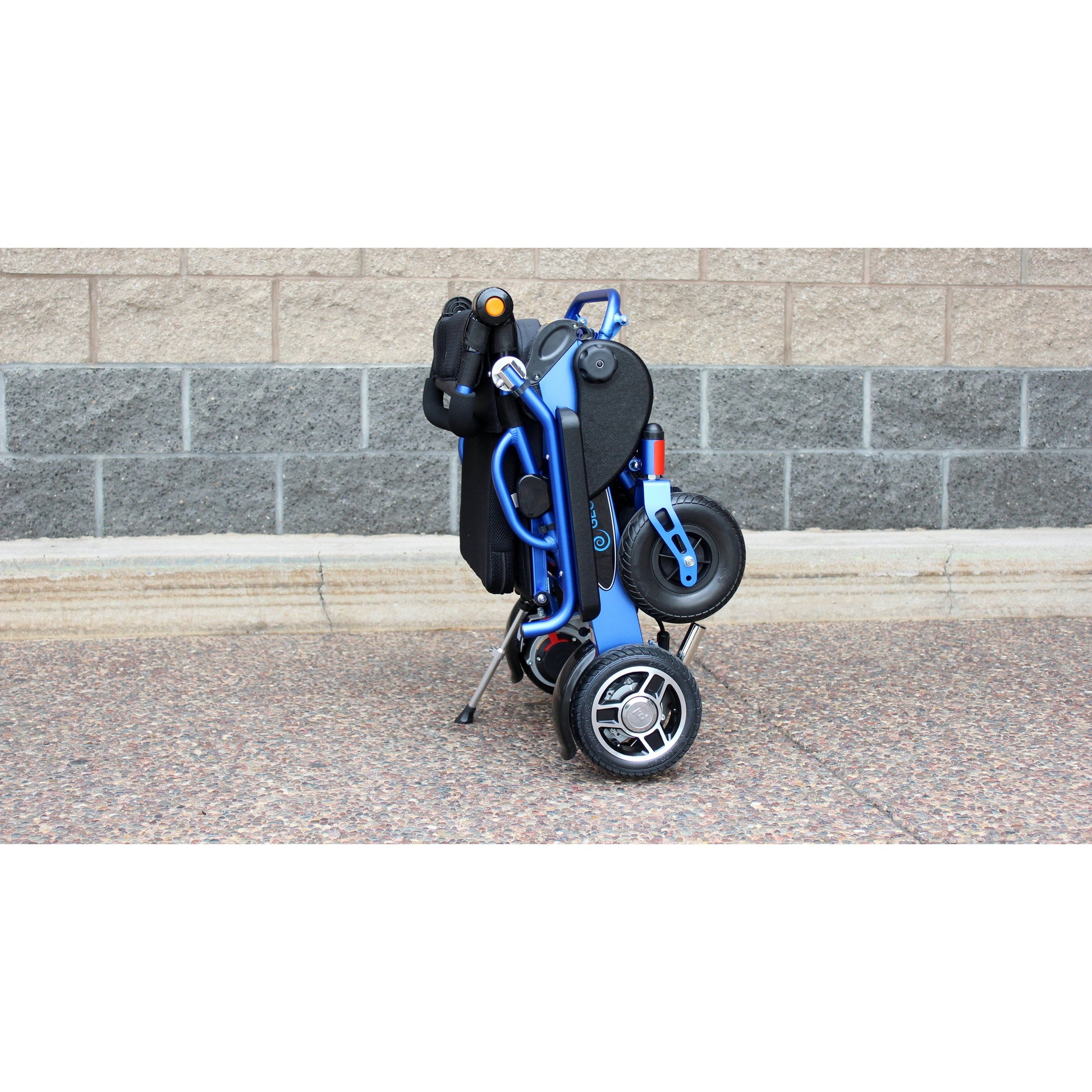

Folded Size (L x W x H): 13" x 26.75" x 30"
Seat Size (L x W): 17" x 17"
Seat Height (From Ground): 19.75”
Seat Type (Removable): ComfortRest Foam with Washable Nylon Mesh
Backrest Height from Seat: 17” to top bar
Backrest Width: 17”
Backrest Recline Positions: 4-Position
Armrest Type / Width / Length: Contoured Soft Foam / 2.75” W / 12” L
Armrest Height from ground: 28”
Armrest Height (from top of seat): 8.5”
Distance Between Inside Armrests (Standard): 21.5”
Distance Between Inside Armrests (Optional): 21.75"
Distance Between Outside Armrests (Standard): 26”
Distance Between Outside Armrests (Optional): 27"
Distance from Rear Wheel to Rear Wheel: 24”
Joystick Height (From Ground): Adjustable (Average is 28.5")
Distance from Seat to Footrest: 18.5"
Front Footrest to Back of Rear Wheel: 35.5”
Adjustable Footrest: Yes (3-Position)
Adjustable Leg Guards: Yes
Motors: Two 180-Watt Brushless Motors
Braking System: Electromagnetic
Battery Type (Airline Friendly): Lithium-ion 16Ah, 24V DC (2 x 8Ah)
Battery Weight: 3 lbs. Each (Total 6 lbs.)
Anti-Tip Wheels: Retractable
Wheels (Diameter x Width): Front: 8” x 1.75” / Rear: 10" x 2.25"
Front and Rear Wheel Material: Solid Rubber (Flat Free)
Frame Warranty: 5 years
Electro / Mechanical Warranty: 1 Year
Battery Warranty: 1 Year

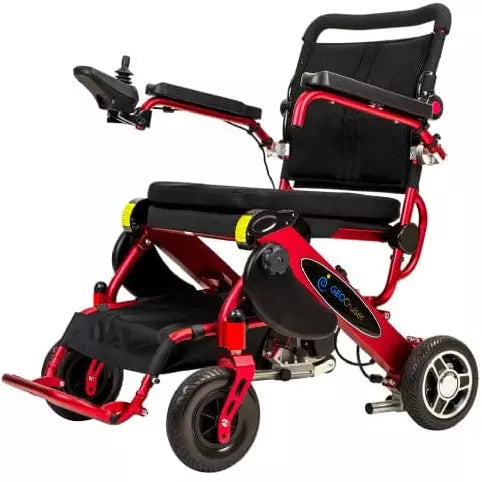

Colors: Royal Blue, Candy Apple Red, Silver
Frame Surface Finish: Anodized (Prevents Corrosion)
FDA Cleared for Safety: Yes
Video
Warranty
The Geo Cruiser comes with a limited warranty and the following coverage:
- Frame - Five (5) years
- Mechanical Parts: One-year (1) year parts and labor
- The Joystick controller and cable assembly will not be warranted if there is physical damage to the joystick, connector pins, connectors or cable. Any damage physical damage to the plastics will not be covered.
- Battery: One-year (1) year parts and labor
Please make sure to contact us as soon as you discover that there is a problem with your Geo Cruiser.
Warranty Exclusions
- Failure to follow the proper use, operation, and maintenance
- The use of non-authorized parts
- Mechanical damage caused by an accident or misuse.
- Consumables such as the inner core and outer tires as well as bearings are not covered
- Any unauthorized changes to vehicle design.
- Any damage caused by a natural disaster such as a flood, earthquake, or fire will not be covered.
- This limited warranty does not cover normal maintenance service or periodic adjustments required for normal use.
