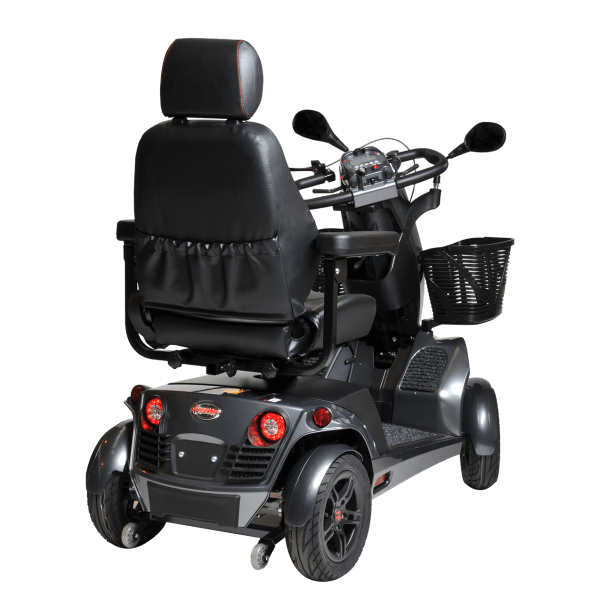

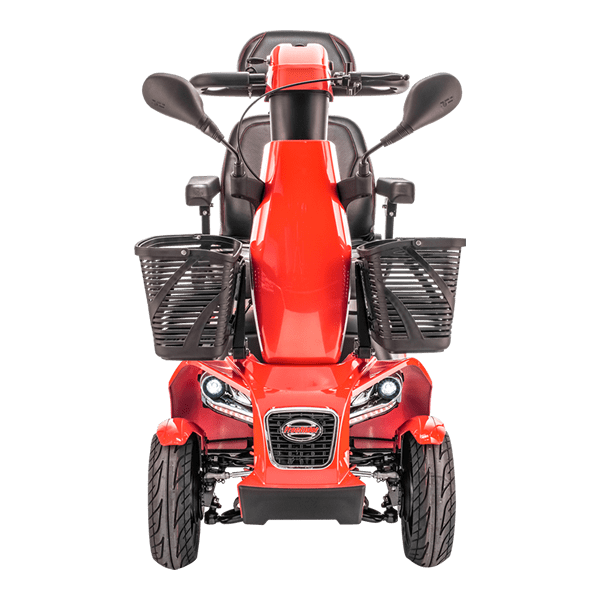

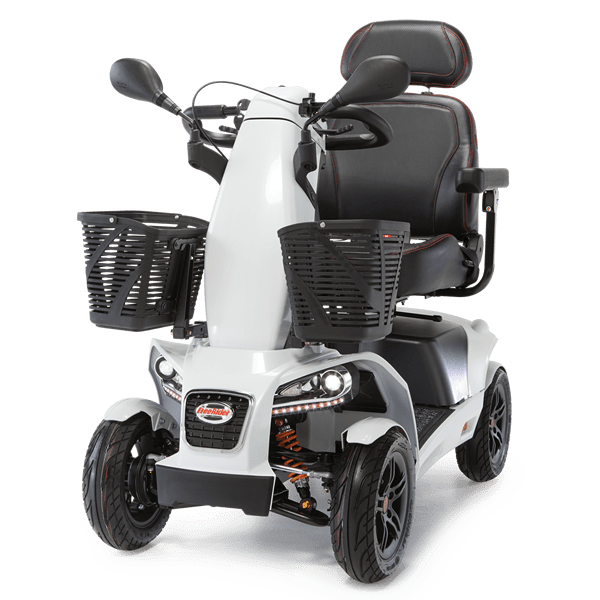

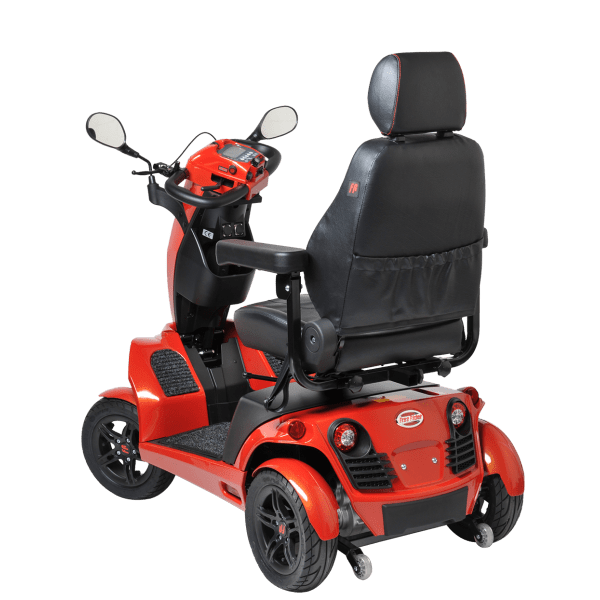

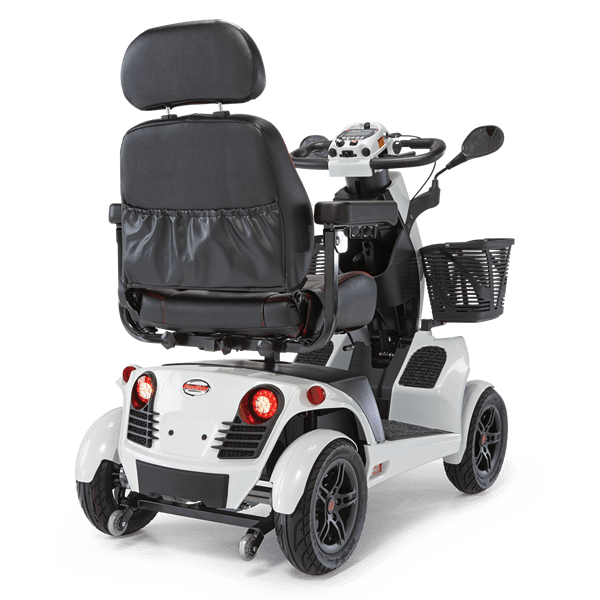

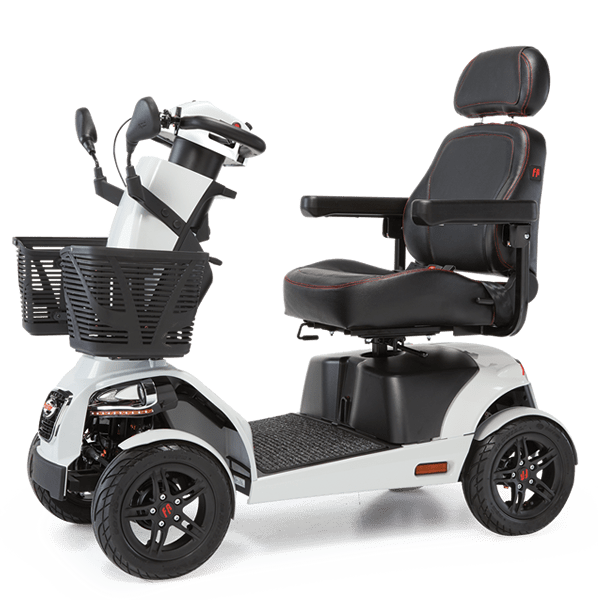

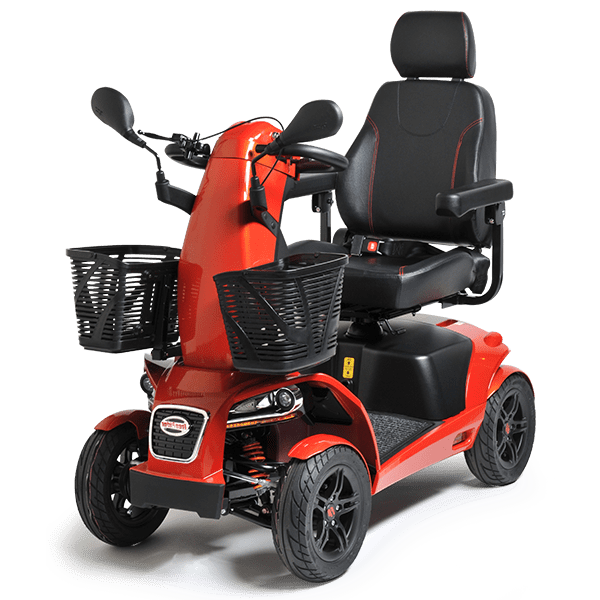

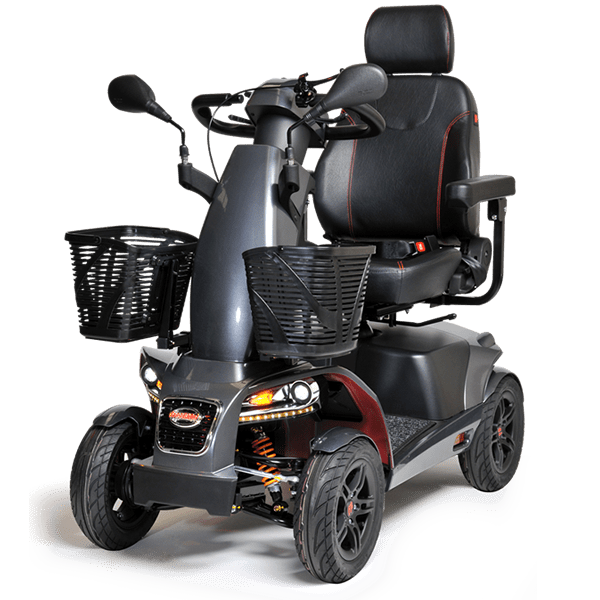

FreeRider FR1 All Terrain Heavy Duty 4-Wheel Mobility Scooter

About the FreeRider FR1 Mobility Scooter:

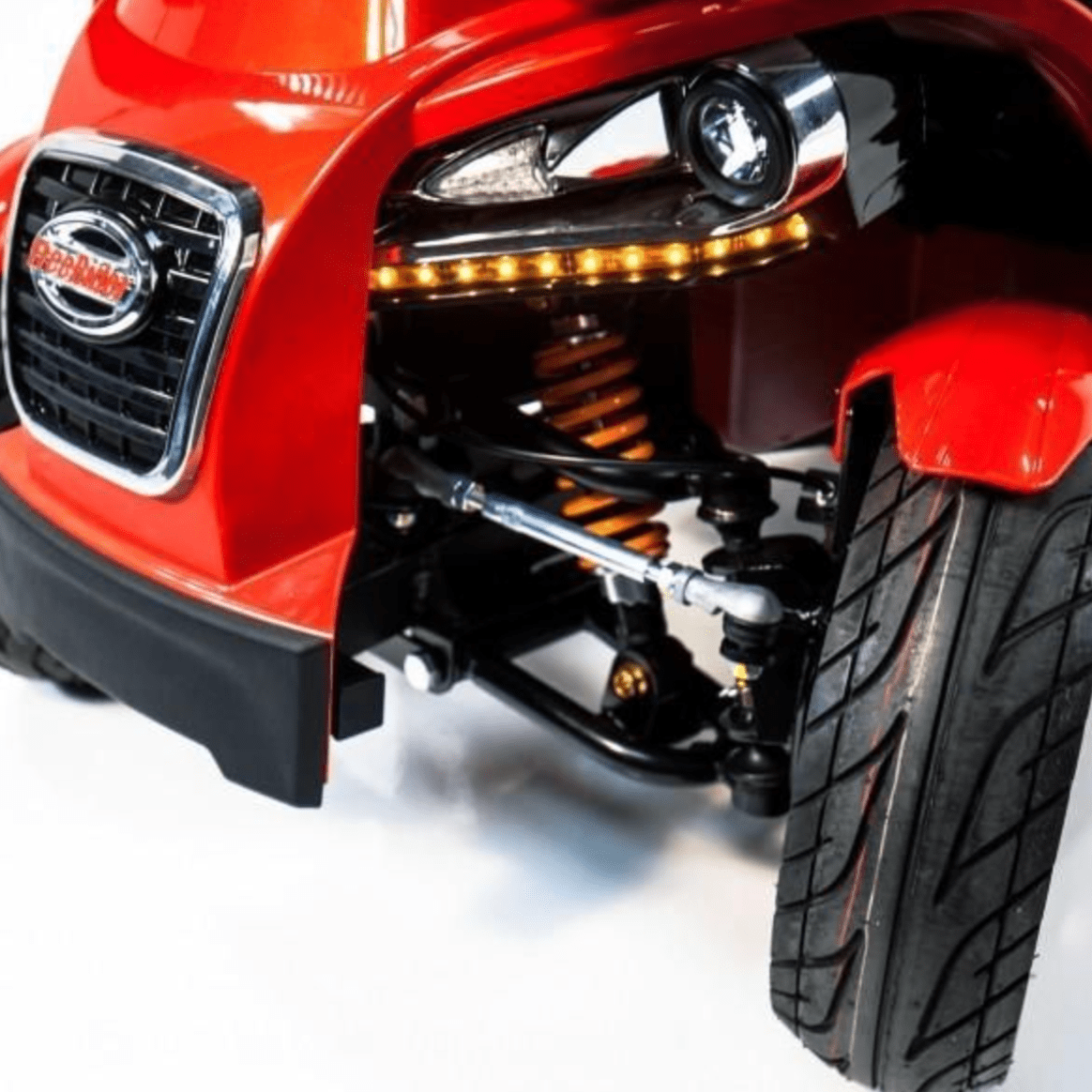

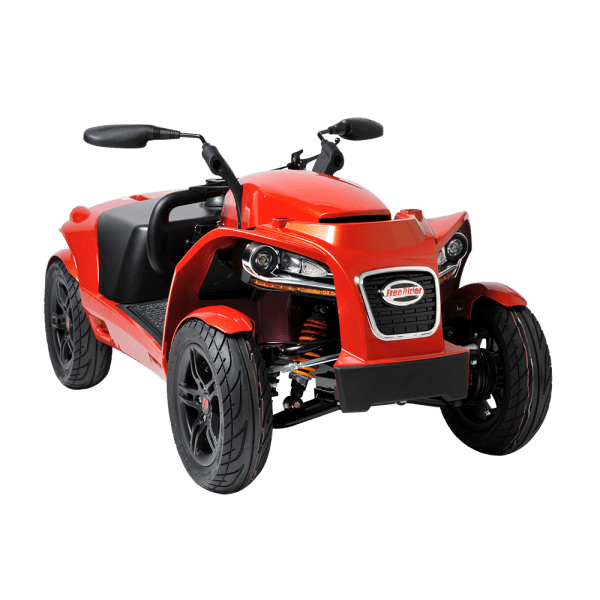

POWER plus PERFORMANCE! The impressive FreeRider FR1 is matched with a sporty appearance and reliable performance to express the spirit of a SuperSport Car. The double wishbone suspension system offers a number of advantages over other suspension systems, including improved handling, stability, comfort, traction, alignment, and tunability.

• Better Stability: A longer A-arm suspension system offers better stability by increasing the distance between the pivot points of the A-arms. This increased distance helps to reduce the lateral movement of the suspension system and keep the wheels more upright, which can improve handling and reduce body roll during cornering.
• Improved Suspension Travel: A longer A-arm suspension system offers increased suspension travel, which can help to absorb larger bumps and rough terrain more effectively. This improves overall ride comfort and reduce the risk of bottoming out.
• Enhanced Traction: A longer A-arm suspension system improves traction by keeping the tires in better contact with the road surface. The longer arms will help to maintain better tire alignment and contact patch during acceleration, braking, and cornering, which can improve overall grip and handling.
• Reduced Wear and Tear: A longer A-arm suspension system reduces wear and tear on the suspension components and tires by spreading out the load more evenly across the suspension system. This helps to extend the lifespan of the suspension system and reduce the frequency of maintenance and replacement.

Overall, a Longer rear swing arm suspension system offers several advantages over a standard length rear swing arm suspension, including improved stability, suspension travel, traction, reduced wear and tear, and better tuning capabilities.

Capacity

• Up to 400lbs
• 76" Turning Radius
• 6.4" Ground Clearance
• Up to 40 Miles Range with [79A]
• 13' Front and rear tires

Equipment

• Adjustable swivel captain seat
• Delta Steering

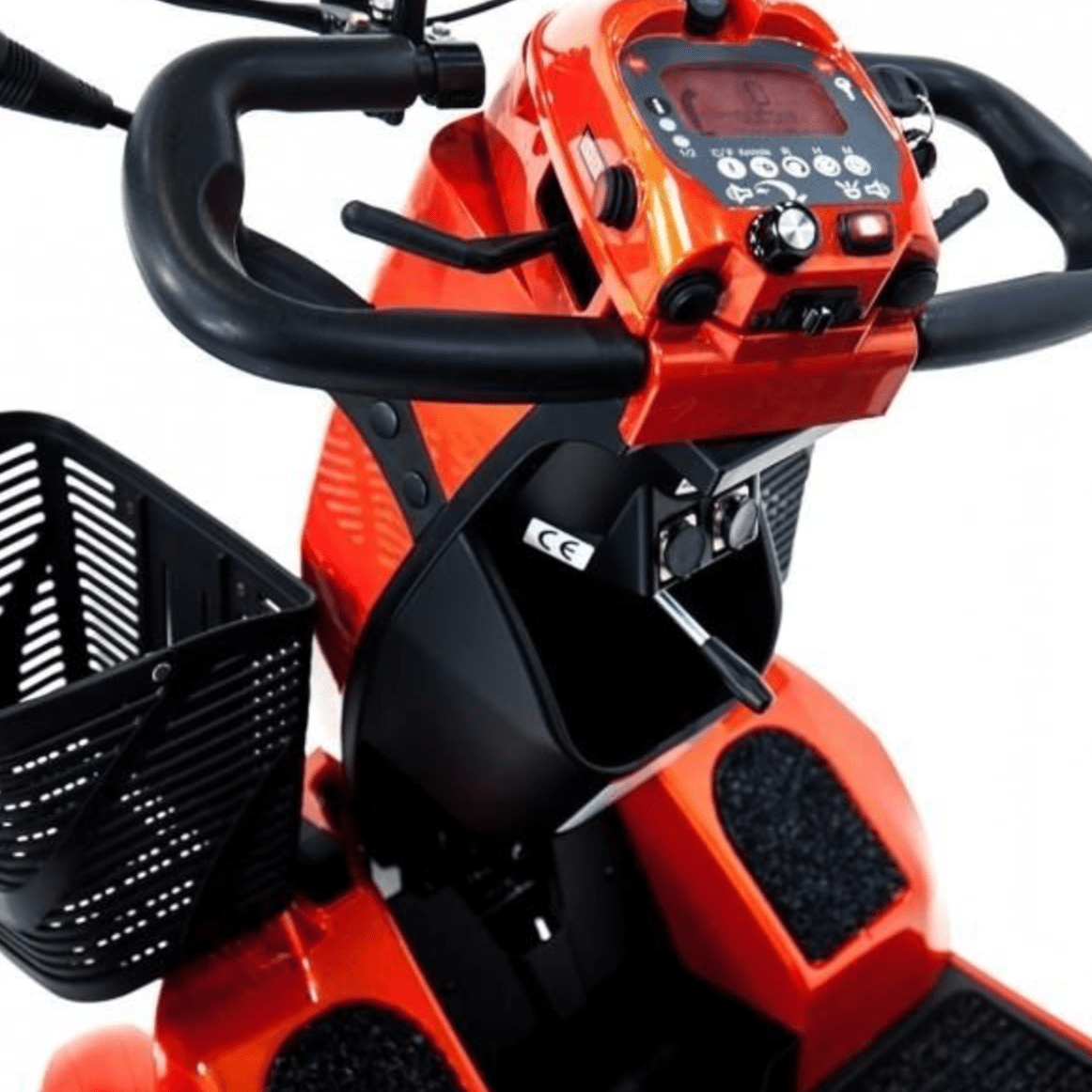

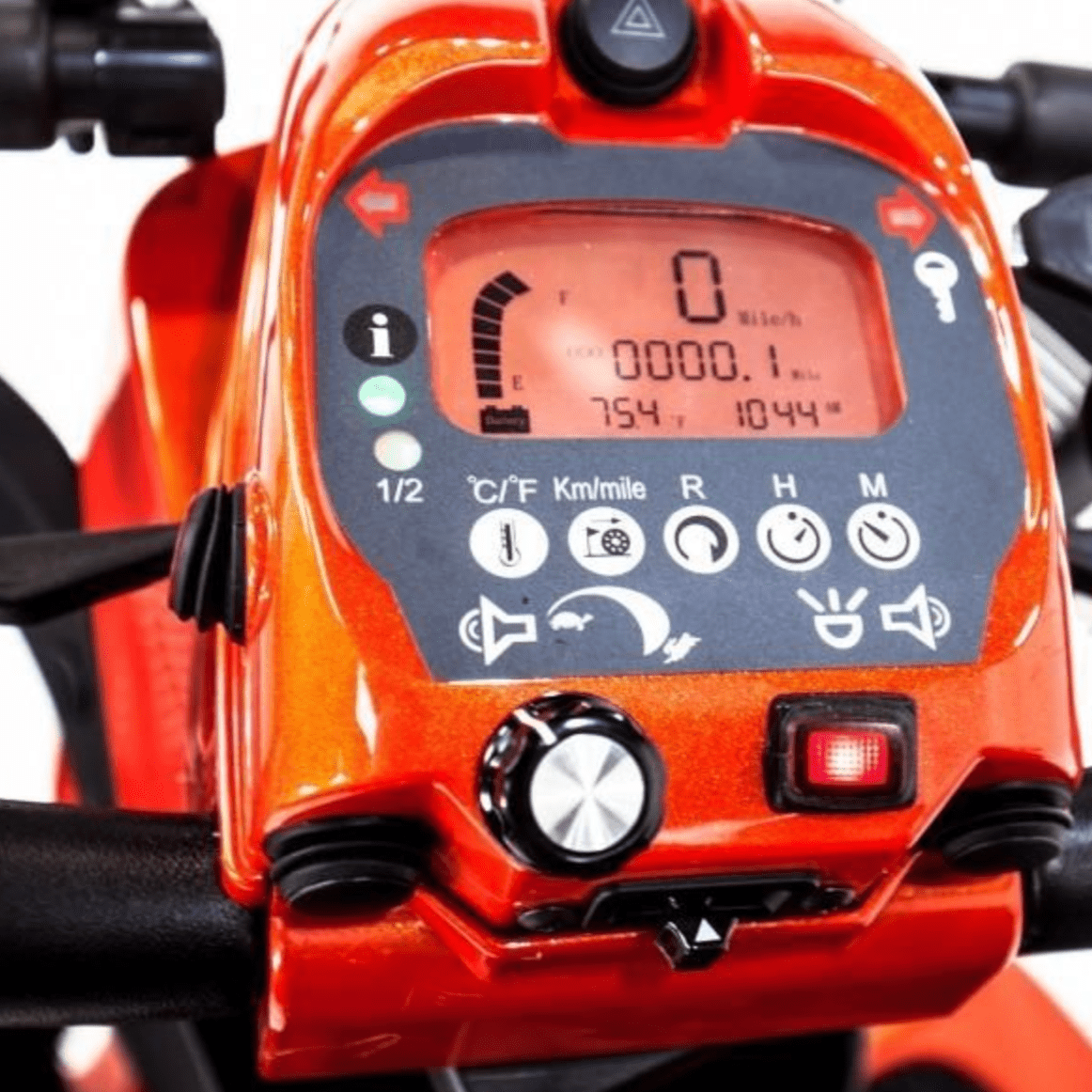

• LCD Digital Dashboard
• Full length heavy-duty armrests
• 3 Height Positions

Power Features

• Front and Rear Supsenion
• Regenerative Breaking System
• 50AGM battery, 79AH Optional
• 24 V8A, 100-240V Offboard charger
• USB Ports on tiller, baskets & Mirrors

Specs

Drive Range: 25/40 miles

Turning Radius: 76"

Top Speed: 9.4 mph

Weight capacity: 400 lbs.

Ground Clearance: 6.4" Suspension: Spring (F and R)

Driving Range: 25/40 Miles

Maximum Speed: 9.6 MPH

Obstacle/Ground Clearance: 6.4″

Turning Radius: 76″

Seat Swivel: Captain Seat w/slider & angle adj.

Overall Width: 27"

Overall Length: 57"

Weight Fully Assembled: 354 lbs

Suspension: 4 Wheel Independent

Braking System: Regenerative, electromechanical, and hand brake

Air Travel Approved: No

Front Tires: 13" Pneumatic

Rear Tires: 13" Pneumatic

Weight Capacity: Up to 400 lbs

Battery: 50 AGM; Opt. 79AH AGM

Off-board charger: 24V8A, 100~240V

Warranty

3 YEAR LIMITED WARRANTY ON STRUCTURAL FRAME
The FreeRider FR1 Mobility Scooter structural frame is warranted for a period of thirty-six (36) months from the date of original purchase by the
original owner/user. Luggie Scooter Inc. will repair or replace at our sole discretion to the original purchaser if the structural frame upon examination by an
authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the warranty period.


1 YEAR LIMITED WARRANTY ON MOTOR, TRANSAXLE, BRAKE ASSEMBLY AND ELECTRICAL COMPONENTS
LUGGIE or FREERIDER branded motor, transaxle, brake assembly and electrical components are warranted for a period of twelve (12) months from the date of
original purchase by the original owner. Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the motor, transaxle, brake and/or
electronics of the scooter upon examination by authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the
warranty period.


1 YEAR LIMITED WARRANTY ON LITHIUM BATTERY/BATTERIES*
LUGGIE branded electric scooter’s new lithium battery is warranted for a period of twelve (12) months from the date of original purchase by the original owner.
Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the battery and/or batteries of the Luggie scooter upon examination by
authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the warranty period.


30 DAYS LIMITED WARRANTY ON ALL PLASTIC PARTS & CHASSIS HOOKS
LUGGIE or FREERIDER branded electric scooter’s plastic parts (tiller clamp, chassis hooks, trigger, tiller lever, etc.) are warranted for a period of thirty (30) days
from the date of original purchase by the original purchaser/owner. Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the
LUGGIE or FREEERIDER plastic parts of the scooter upon examination by authorized Luggie Scooter, Inc.’s representative to be defective in material and/or
workmanship within the warranty period.

WARRANTY DOES NOT COVER NORMAL WEAR AND TEAR, SHIPPING DAMAGE, ALTERATIONS, MODIFICATIONS, MISUSE, NEGLECT OR ABUSE.
