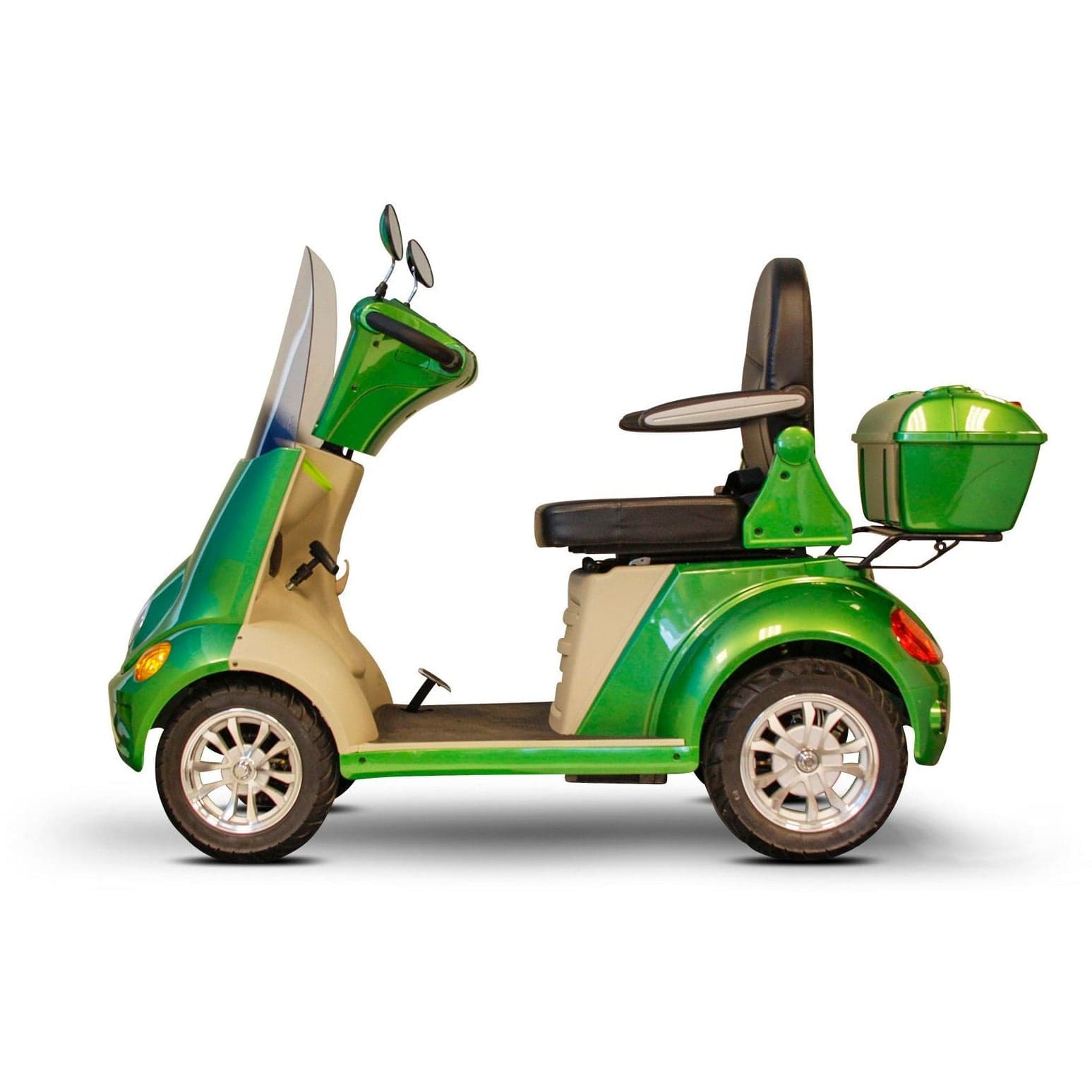

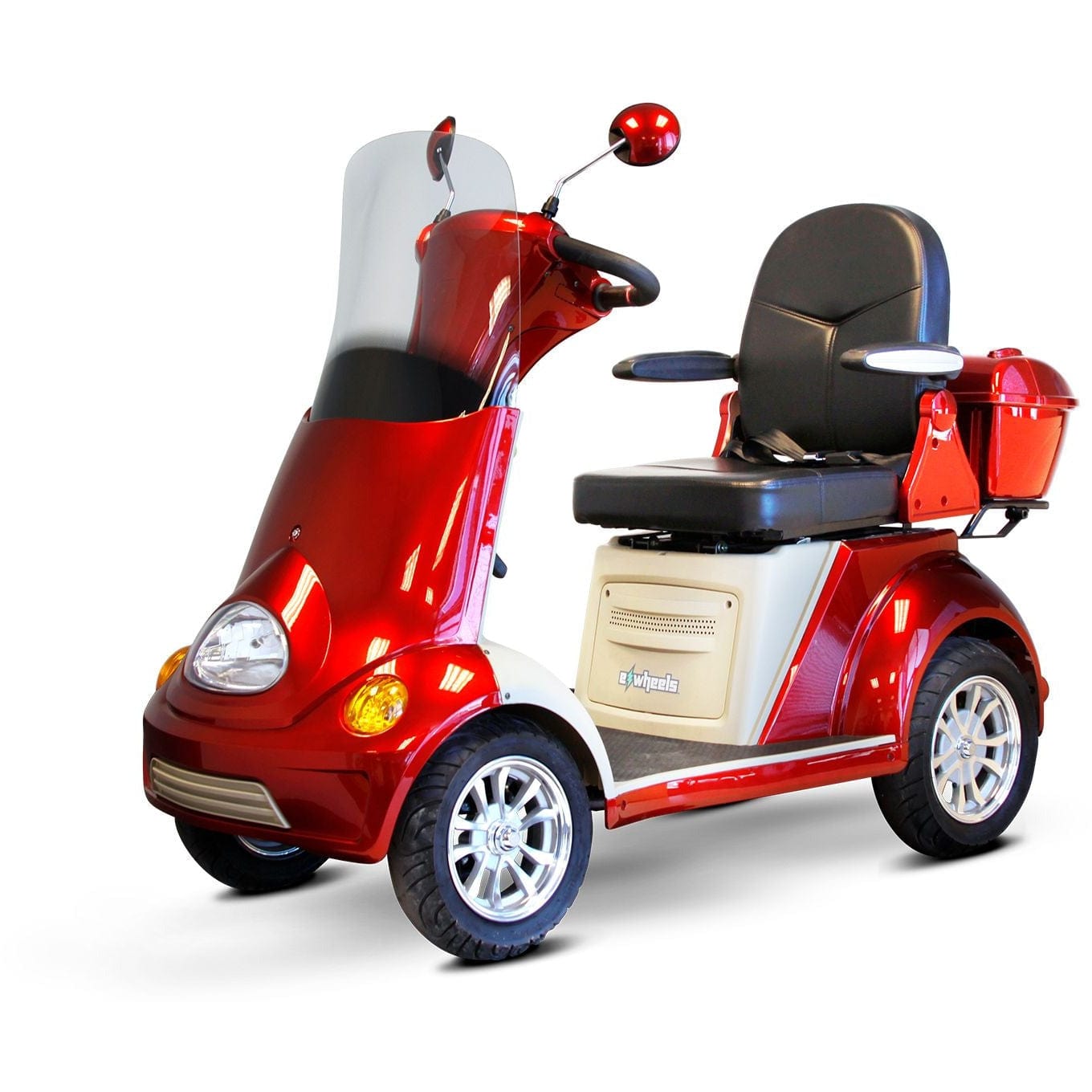

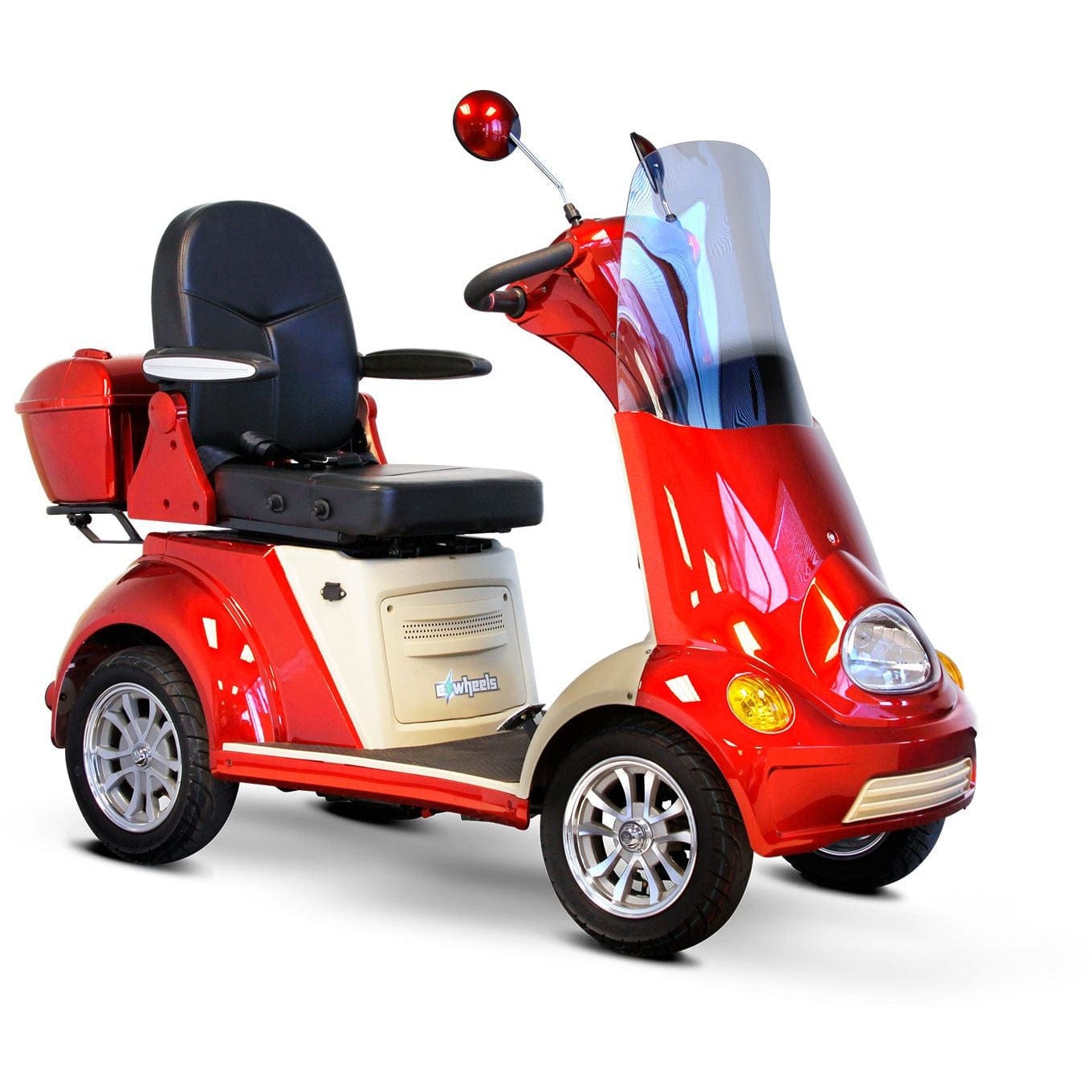

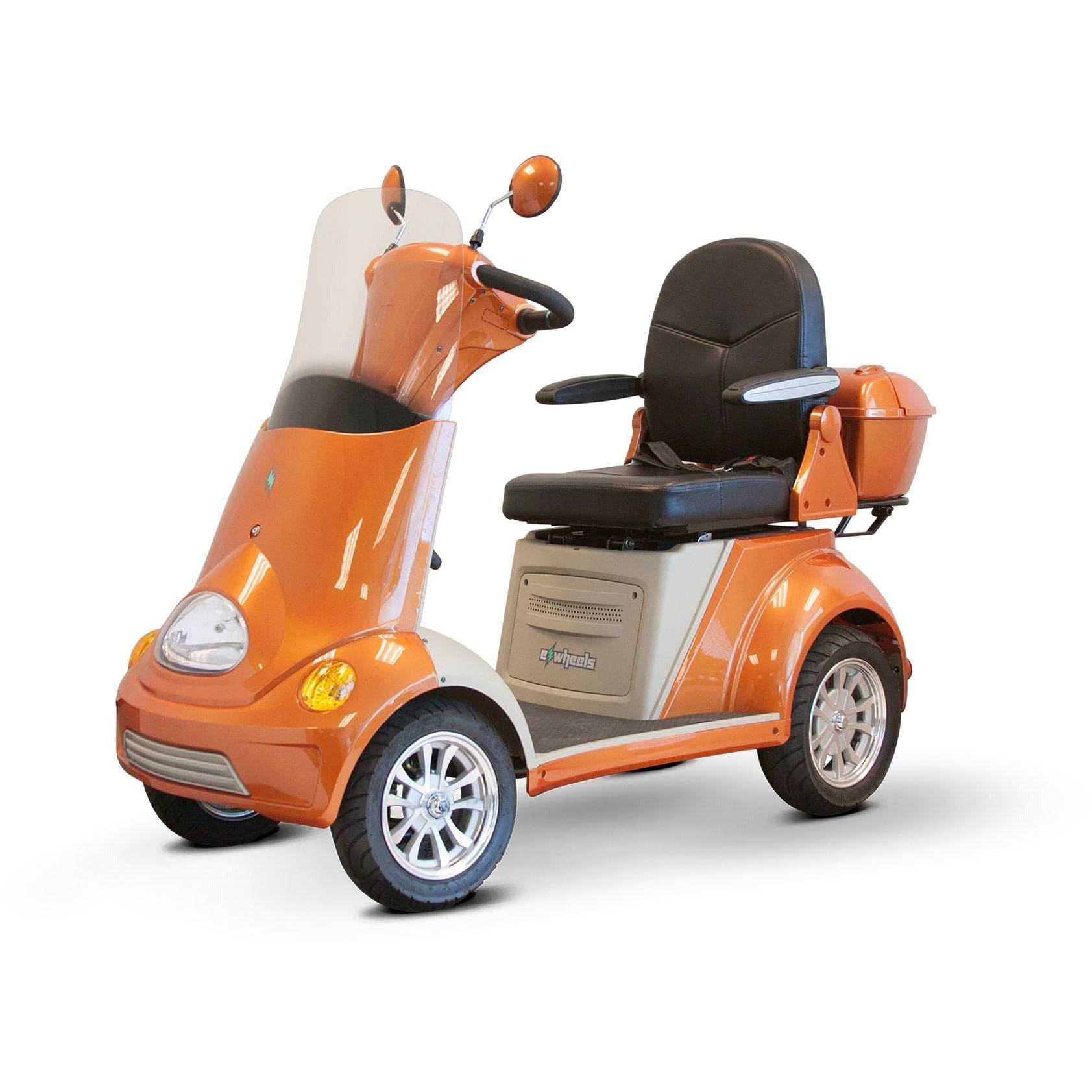

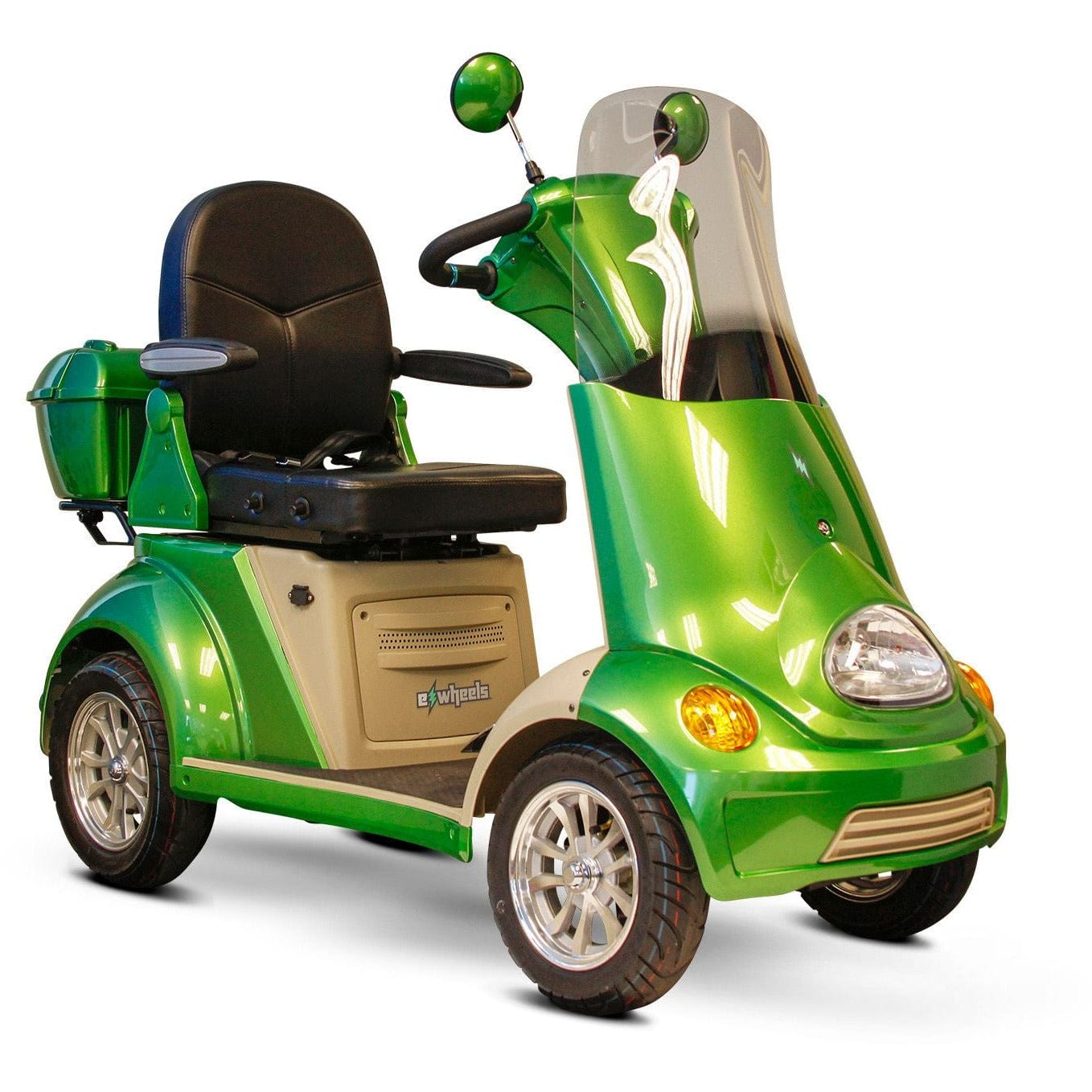

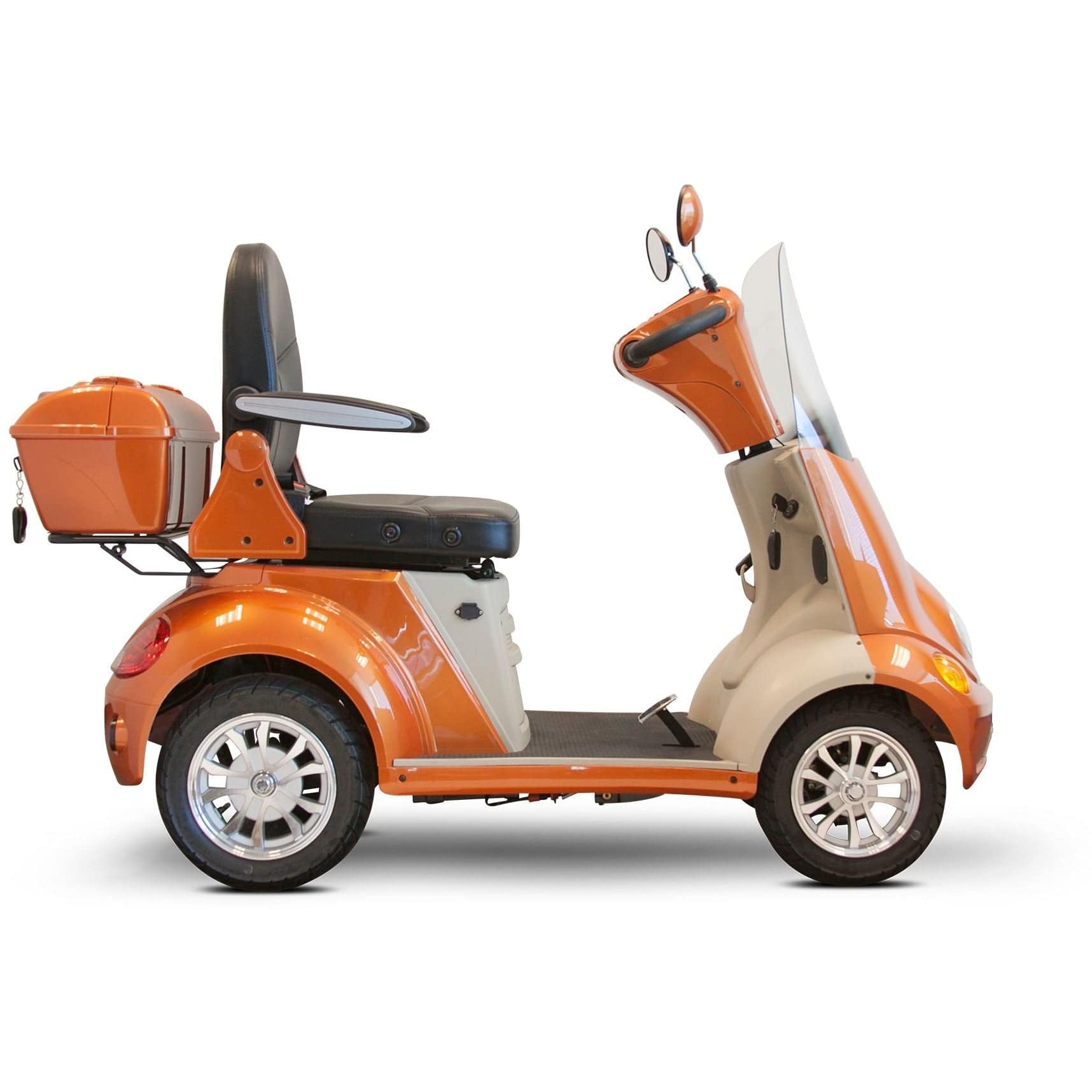

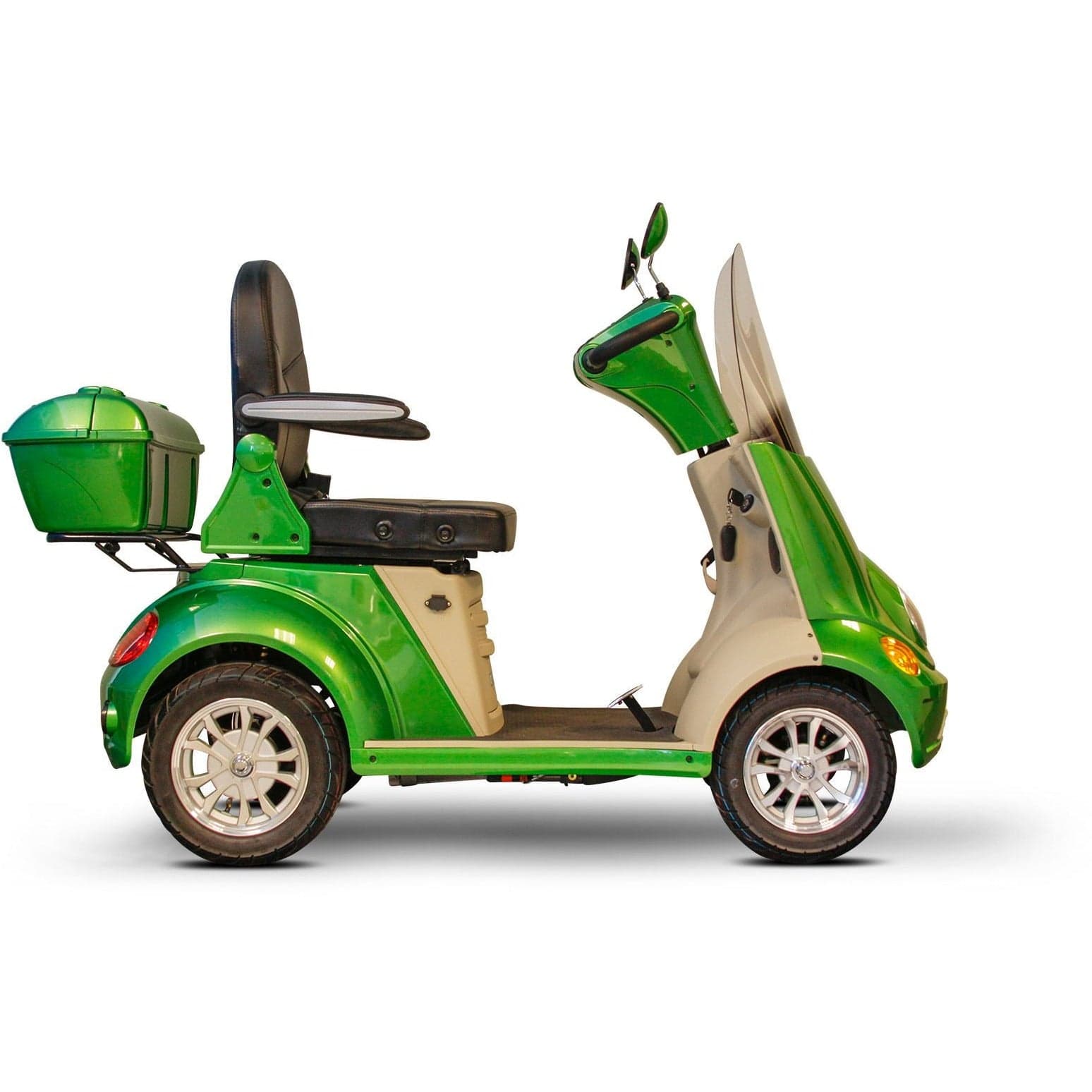

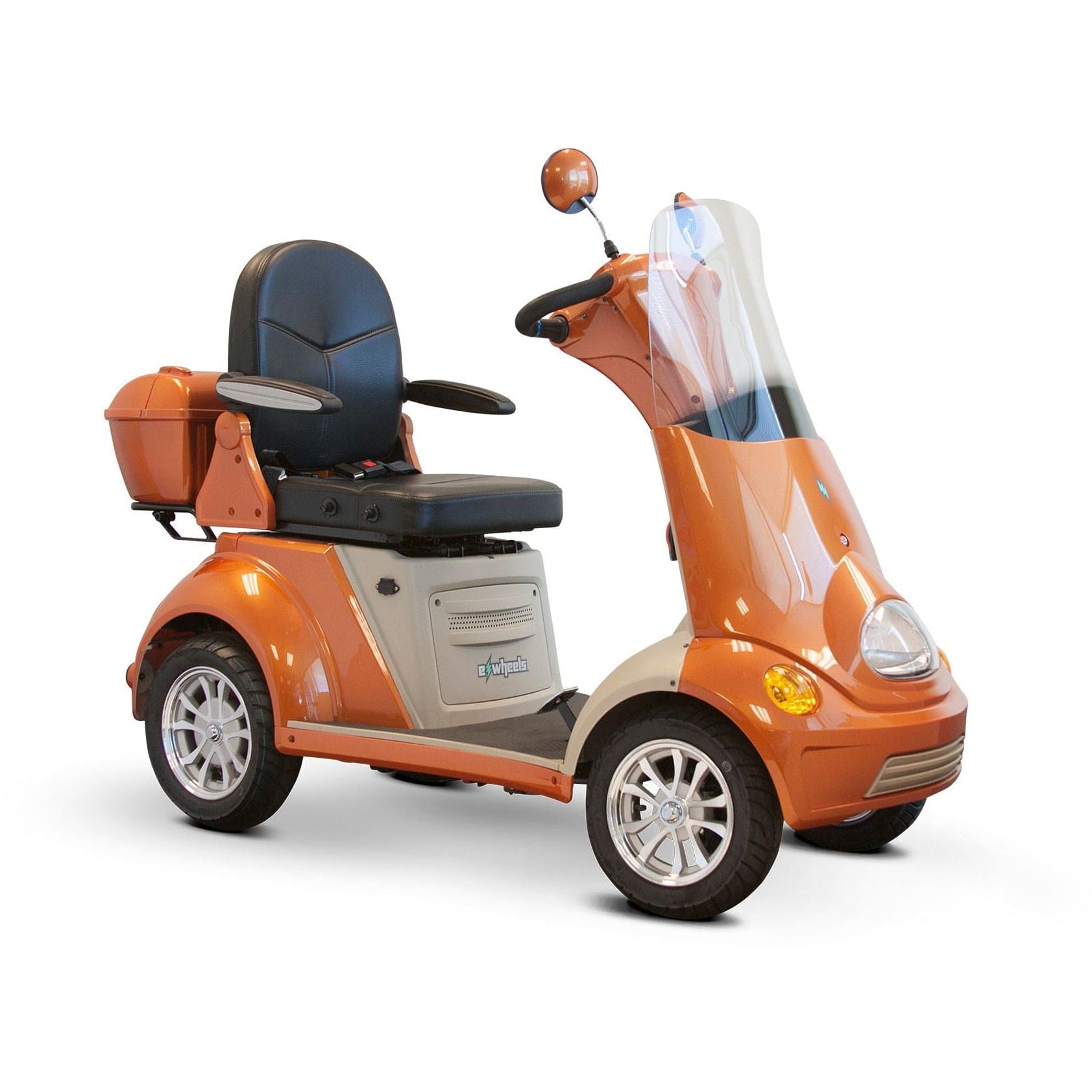

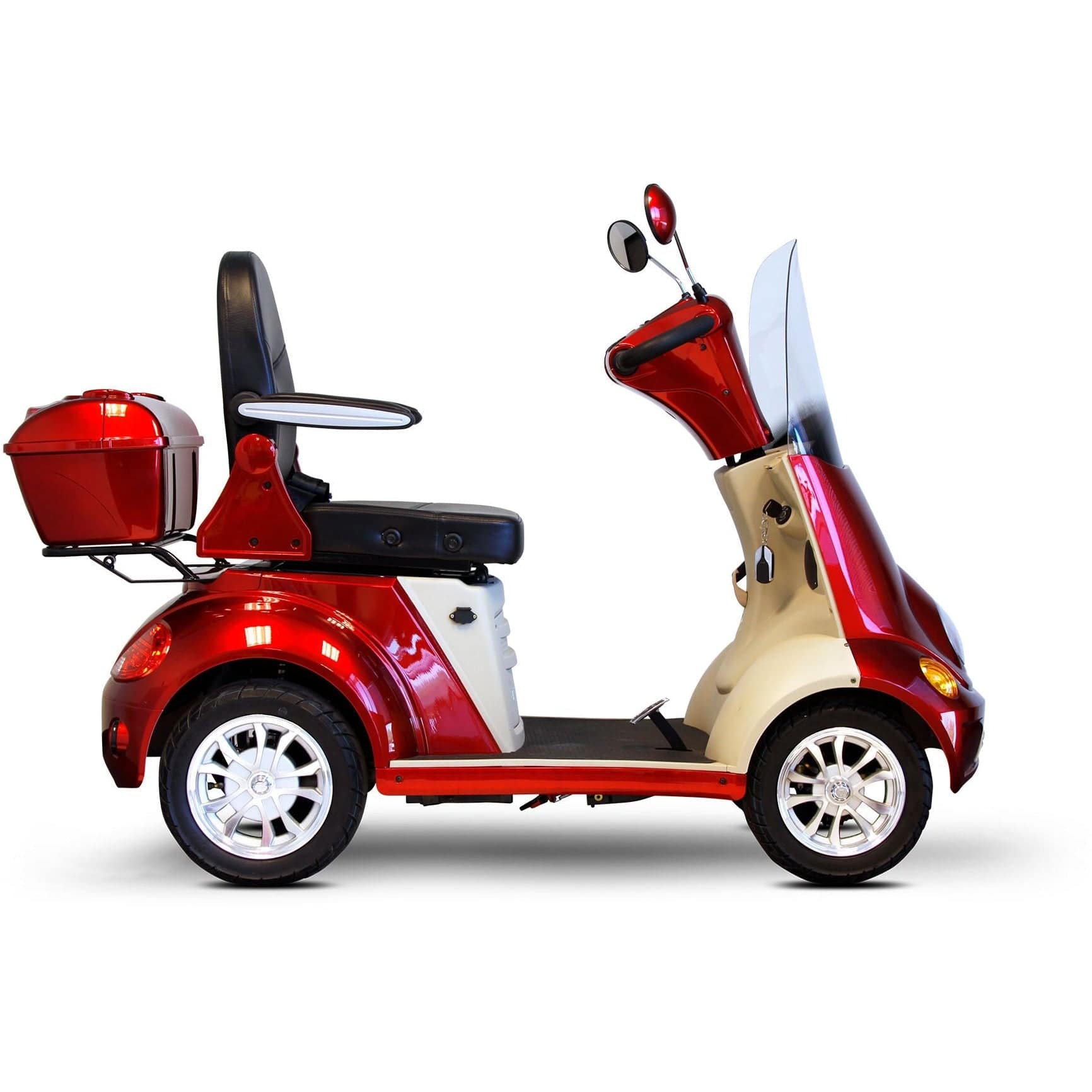

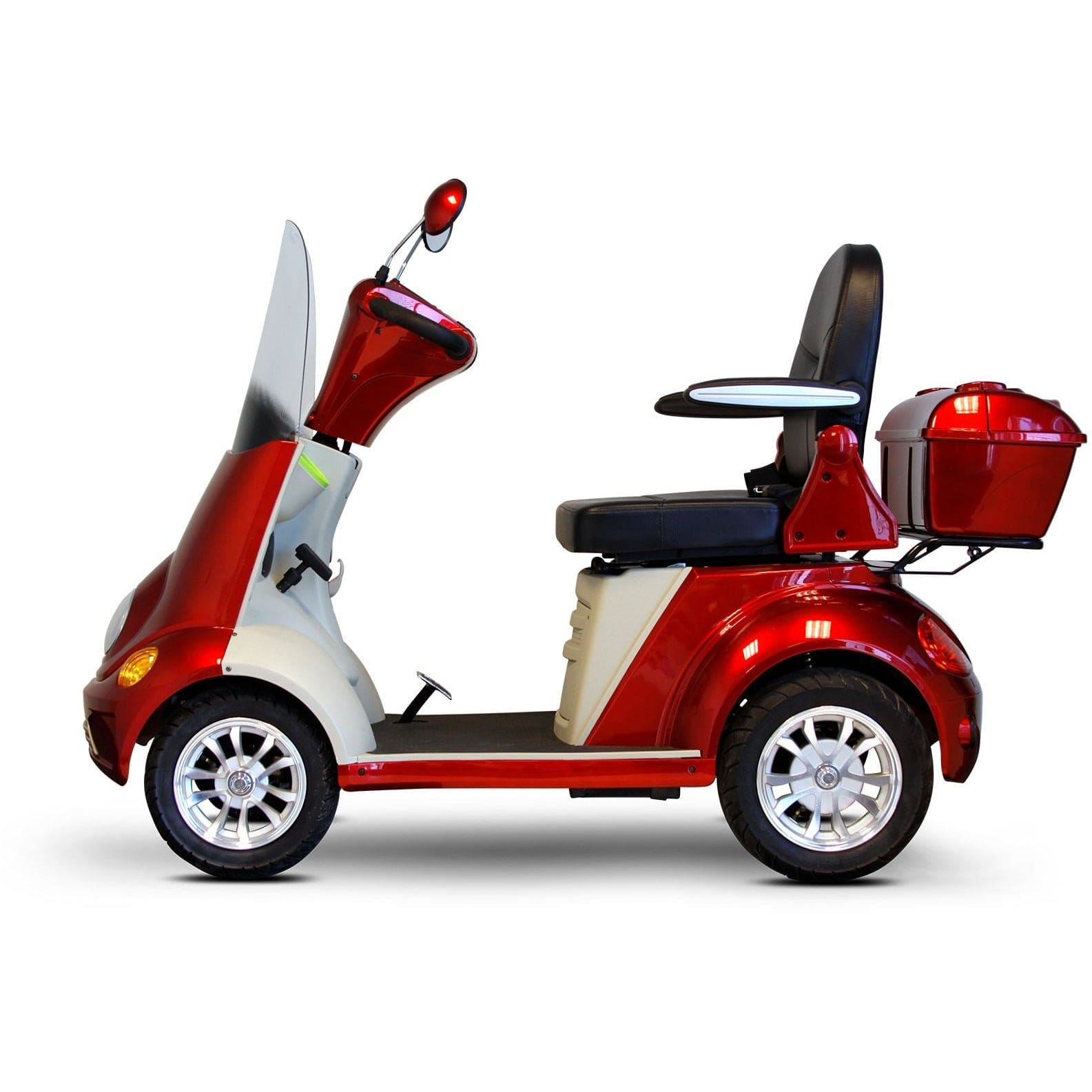

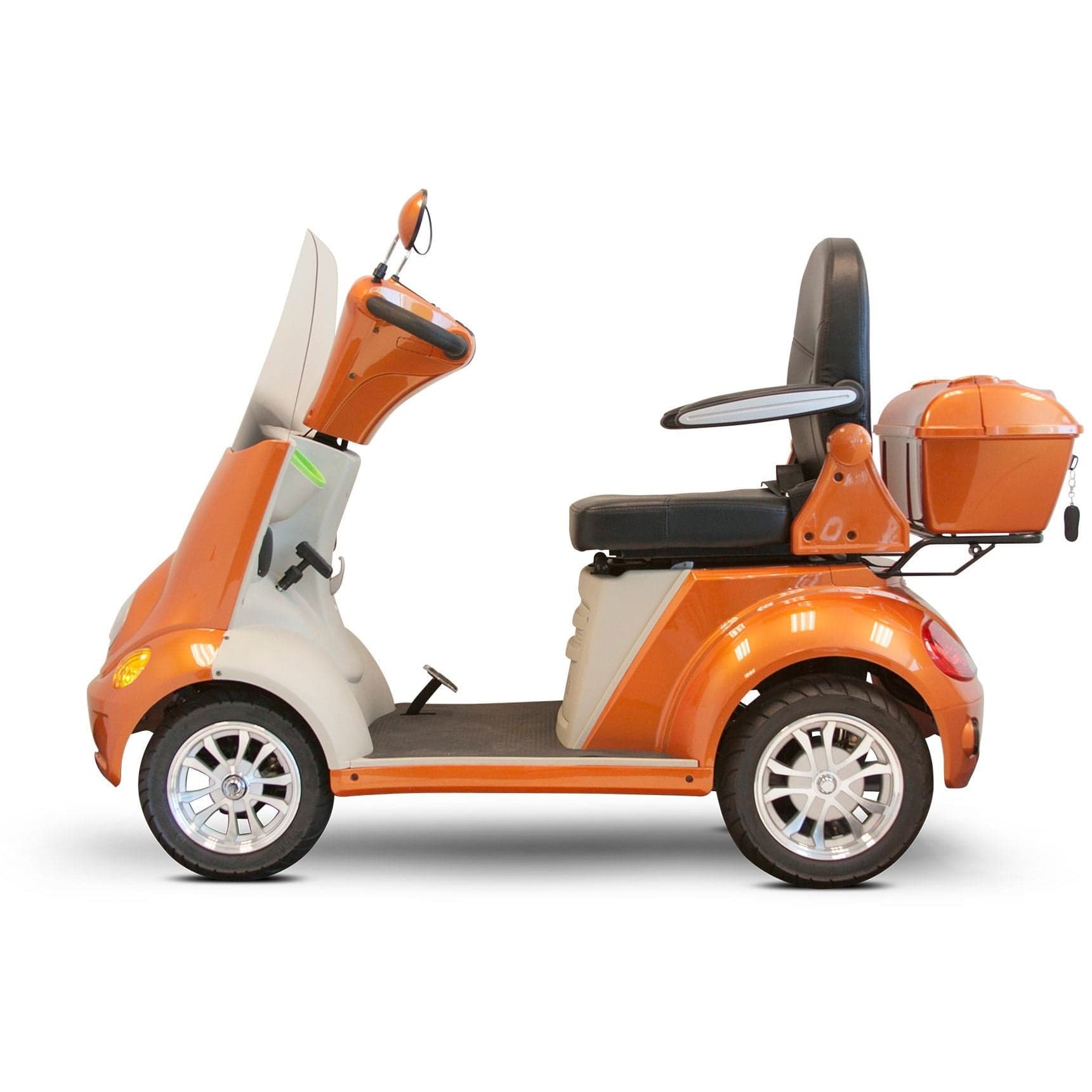

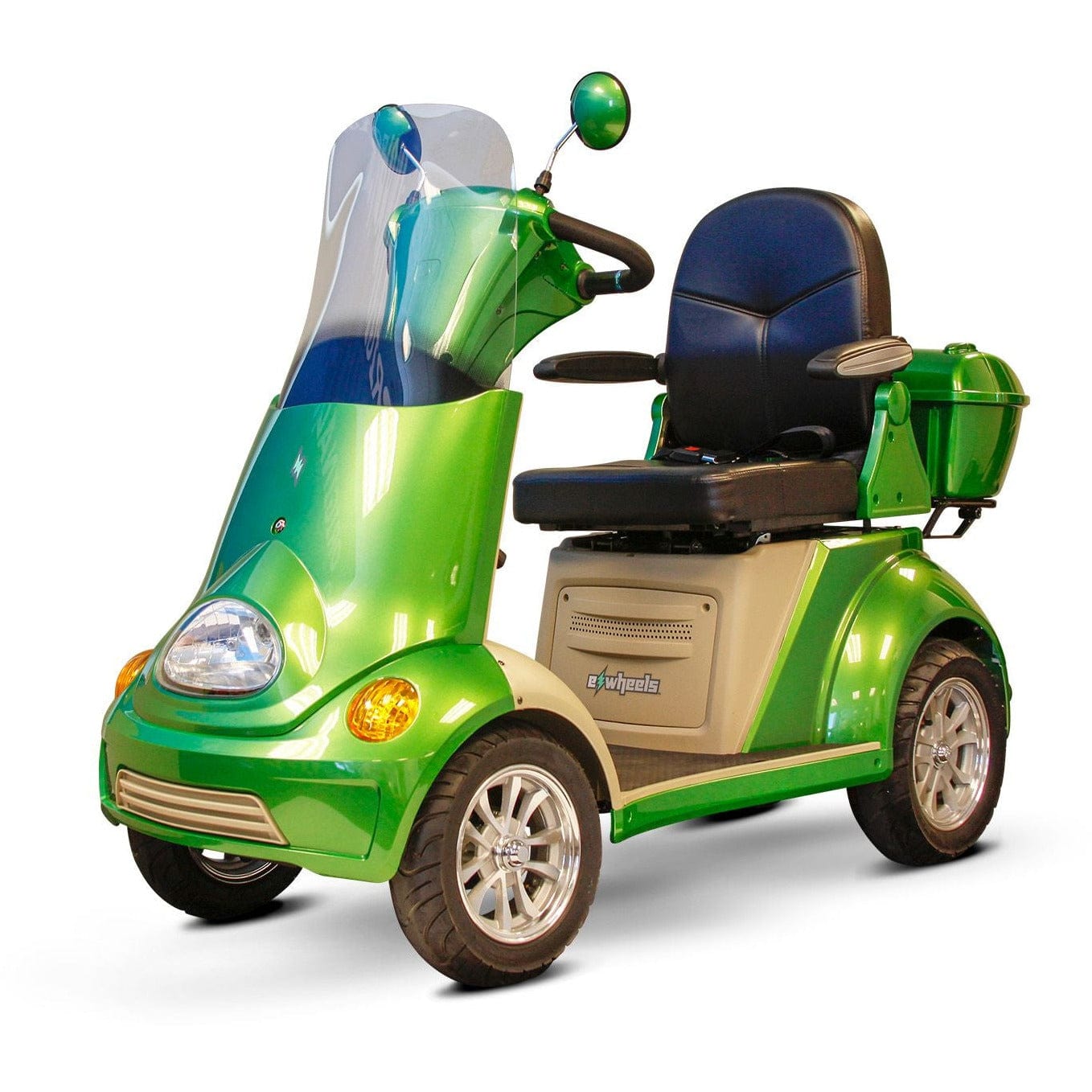

EWheels EW-52 Heavy Duty Recreational Mobility Scooter

About the EW52 Scooter:

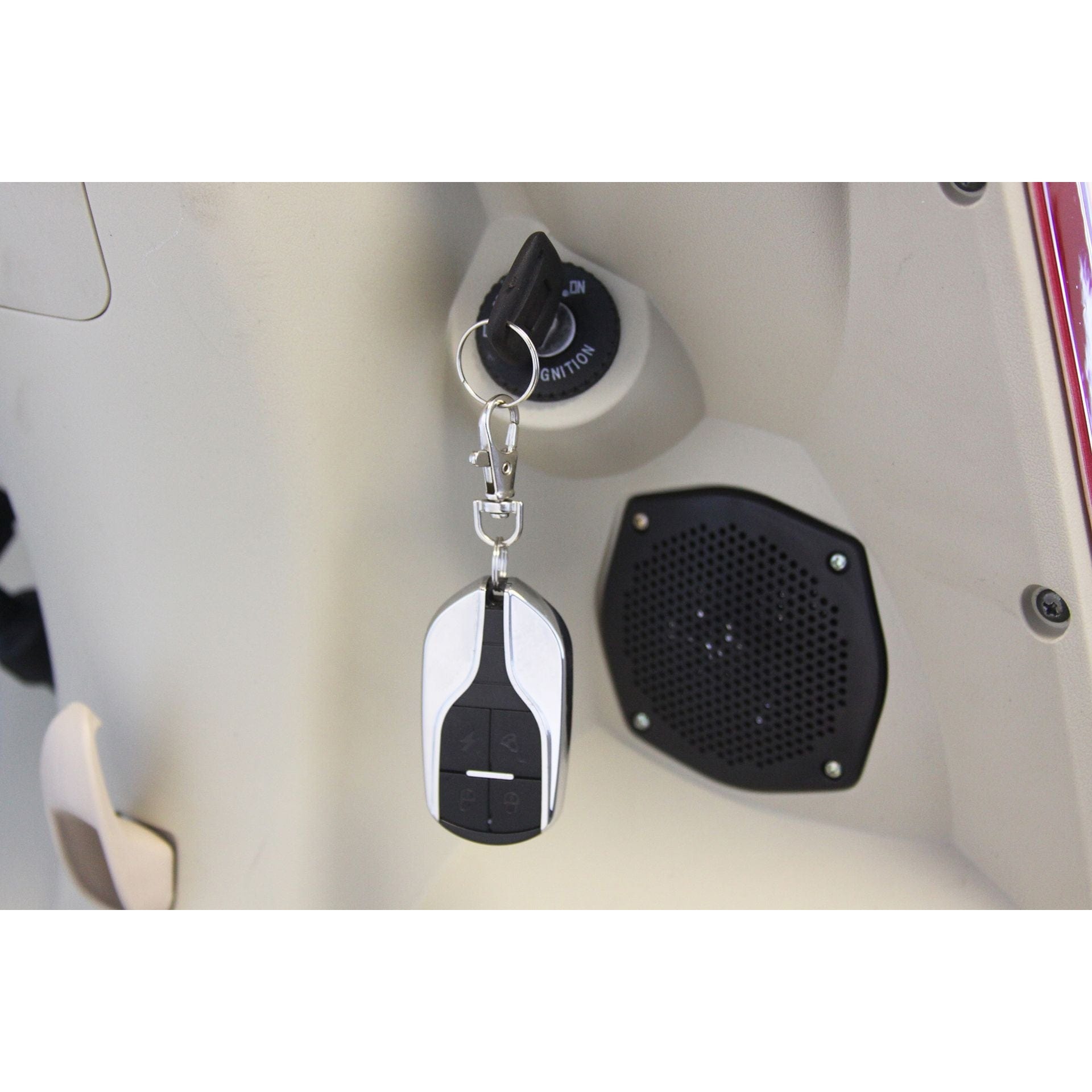

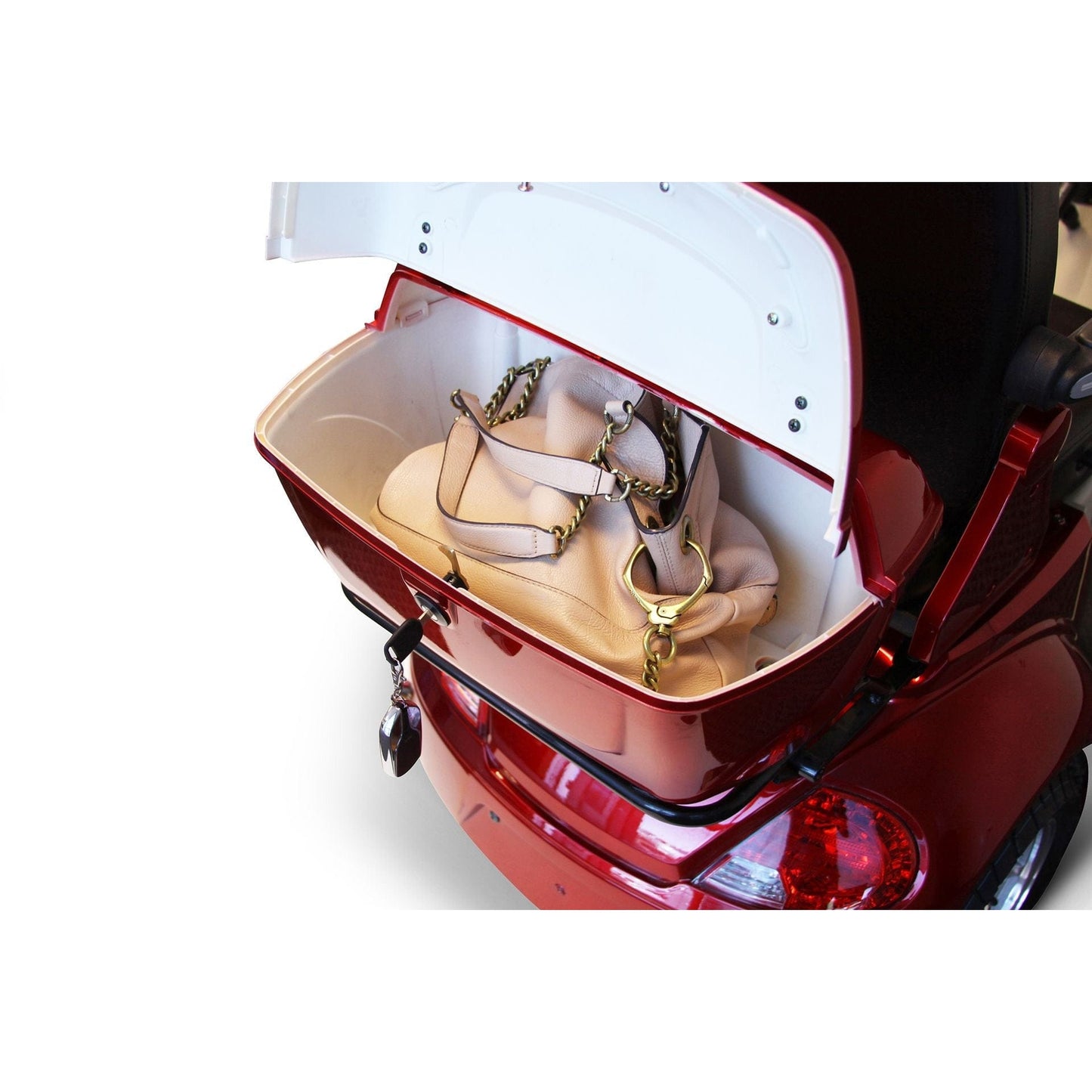

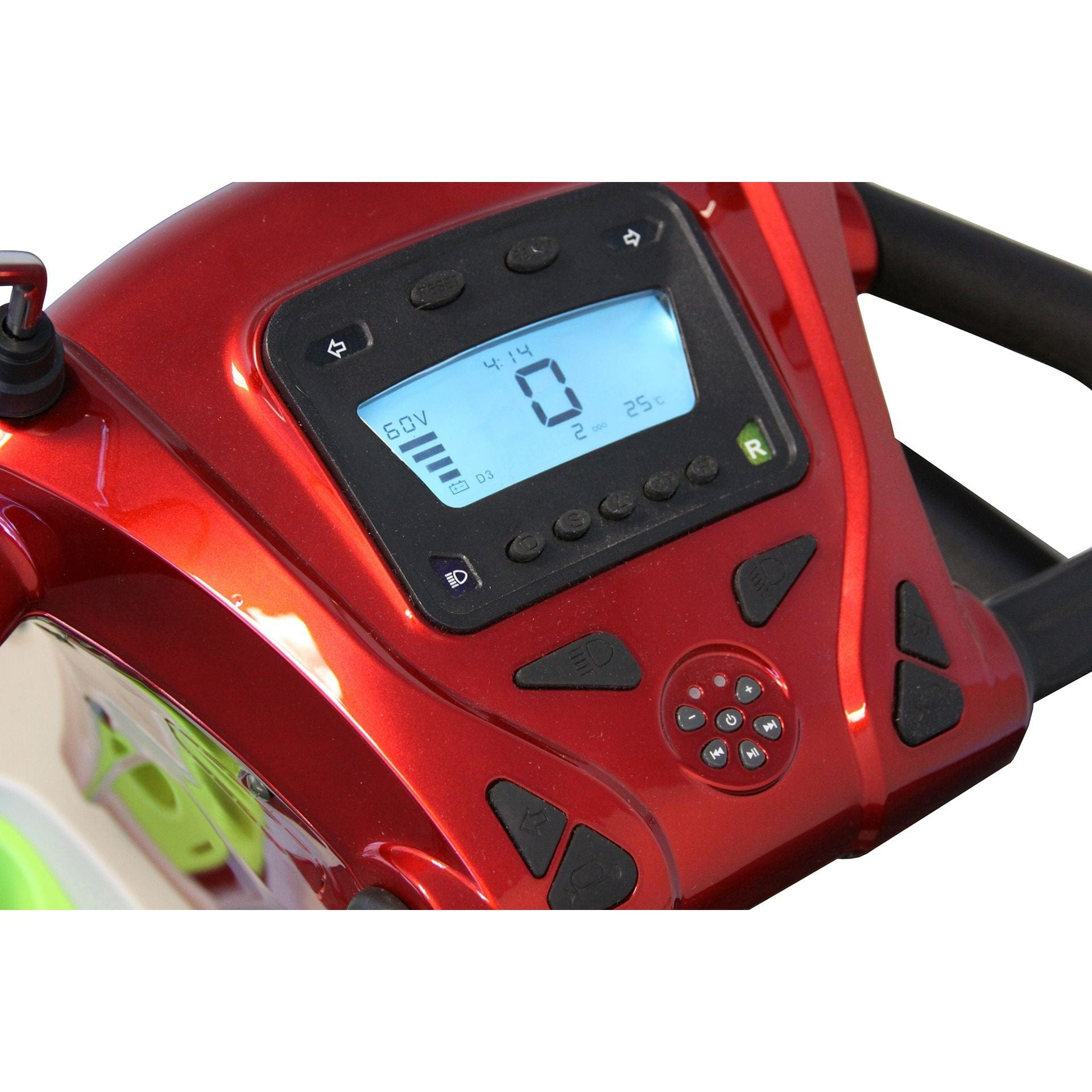

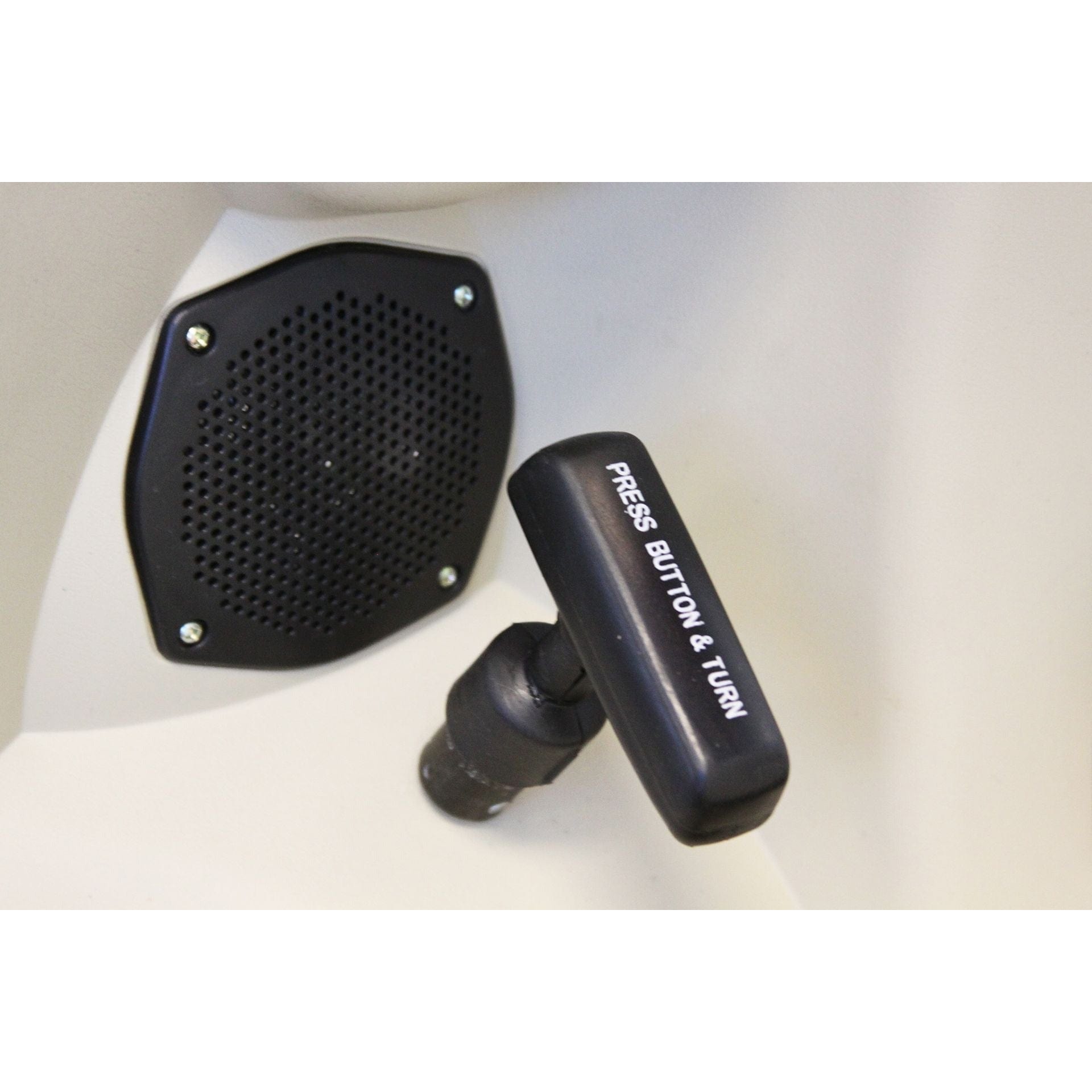

Designer style elegance with performance to match! This is the most powerful four-wheel scooter in the USA! 15 mph max speed, 45-mile range, 500 lb weight capacity, digital dash, 3 speaker stereo system, cruise control, locking cargo box, alarm system, remote key fob. Shipped fully assembled. The EW52 Scooter has it all!

Specifications:

Scooter Weight Capacity: 500Lbs.

Speed: Up to 15mph

Distance: 43 miles per charge (distance varies on terrain, riders weight and road surface etc.)

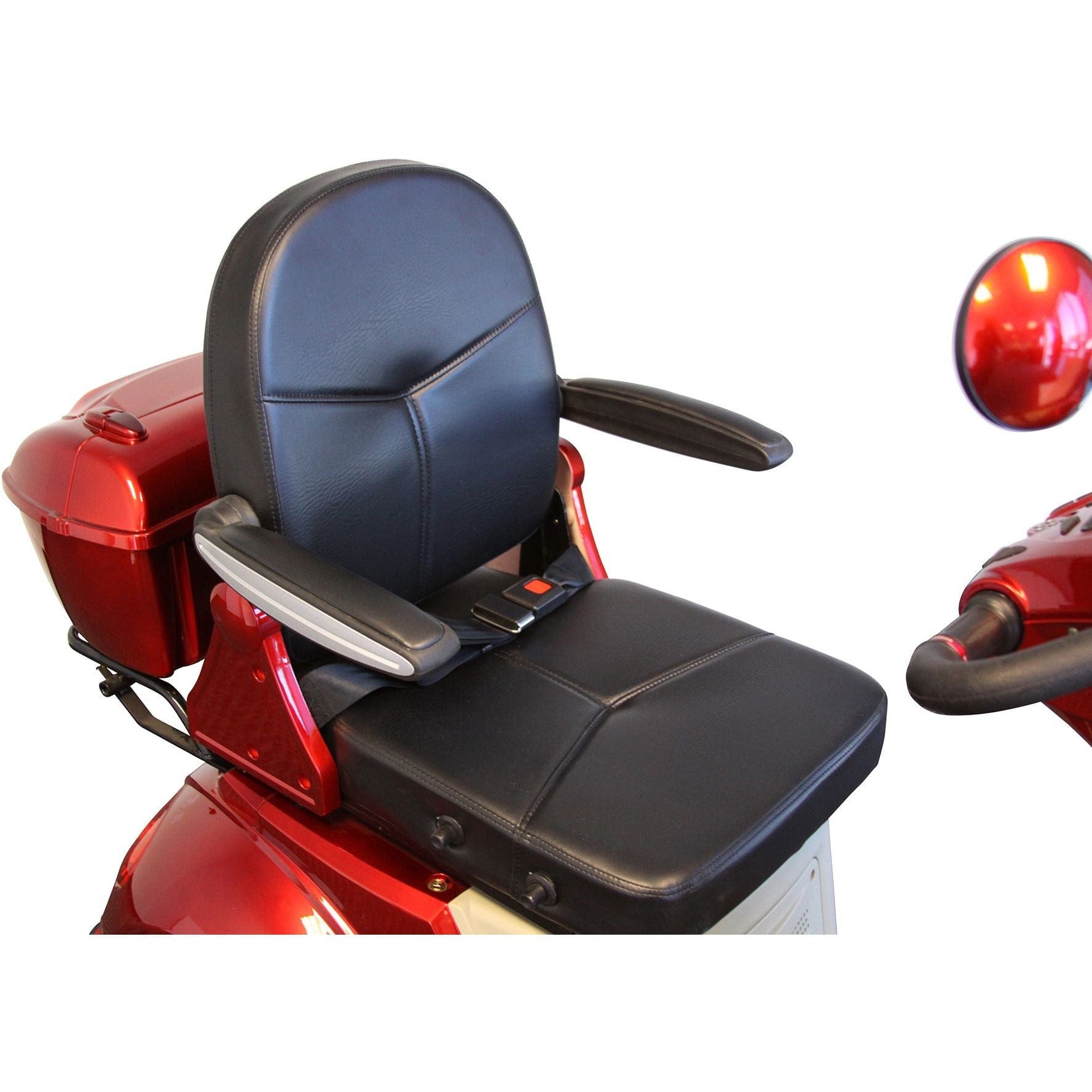

Front Seat Type: Adjustable chair with backrest

Front Seat Size: 22 ½”x17 ½”x23” (LxWxH)

Front Seat: 27” From Ground

Turning Radius: 90”

Rear Seat Size: N/A

Steering Height: 41” from Ground

Rear Foot Rest: N/A

Power Electric Watts: 700 Watt

Motor Type: Transaxle differential brushless

Amps: 20 AH

Volts: 60 Volts

Dimensions: 72” x 27” x 45” (LxWxH)

Floor Clearance: 5”

Front Basket: N/A

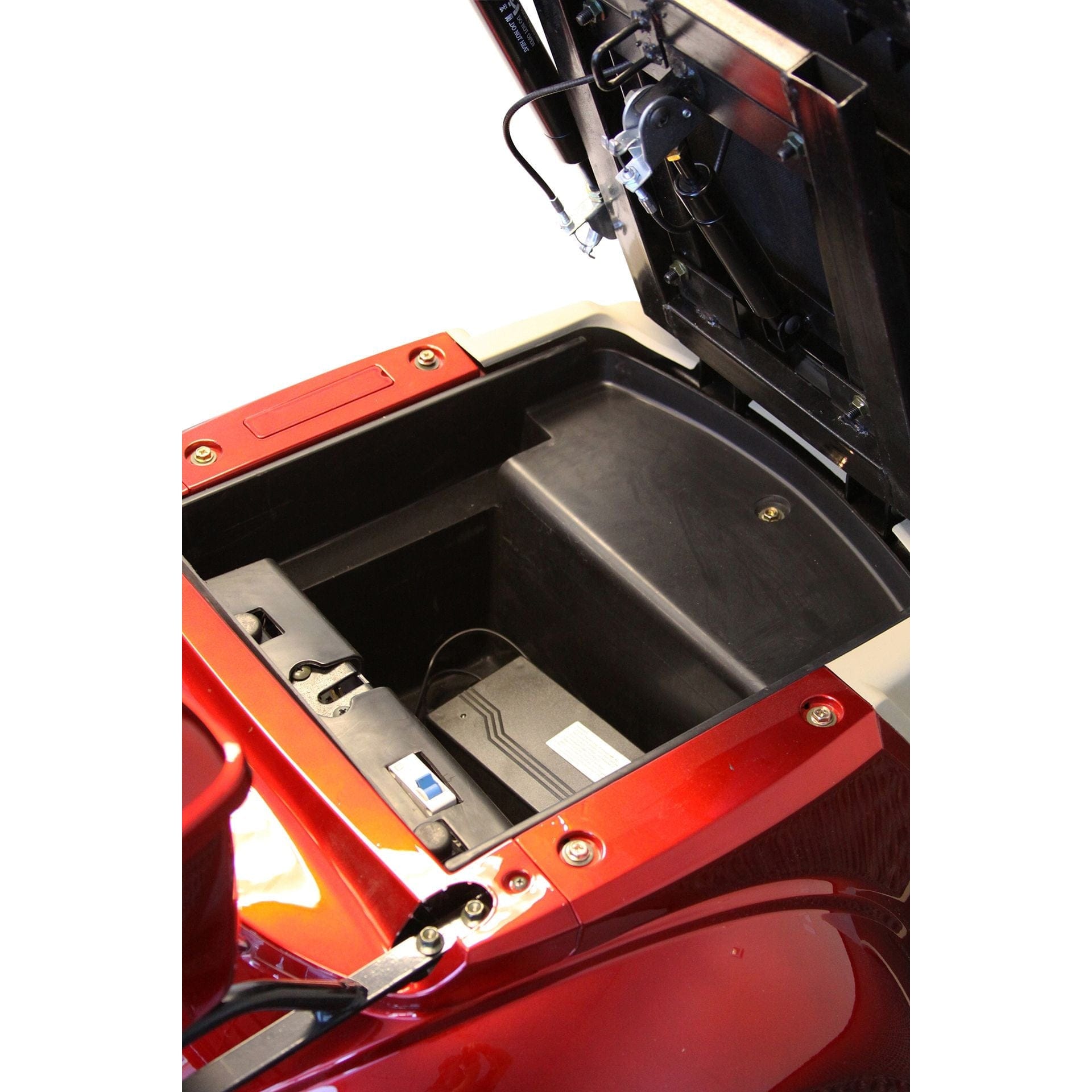

Batteries: (5) Sealed Lead Acid Maintenance Free

Forward/Reverse switch: Yes

High/ Low-Speed switch: (3) Speed switch

Front tire size: 13” Tire Type: 90/65-8

Rear tire size: 15” Tire Type: 120/50-9

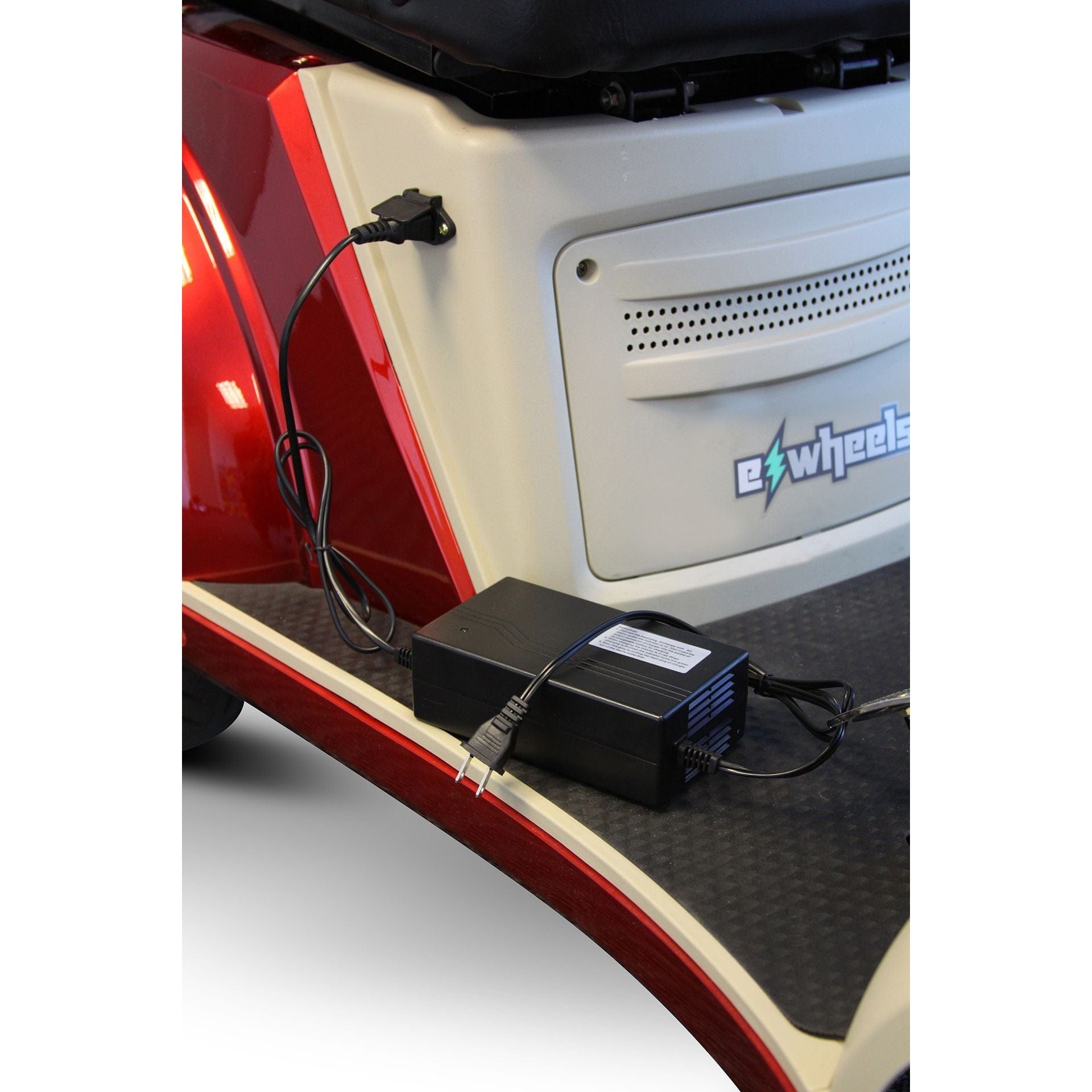

Charger: 60-volt Smart Charger included

Throttle Type: Variable Speed Control – Twist throttle

Key Start: Yes

Braking System: Rear drum brakes

Drive System: 700 Watt Brushless

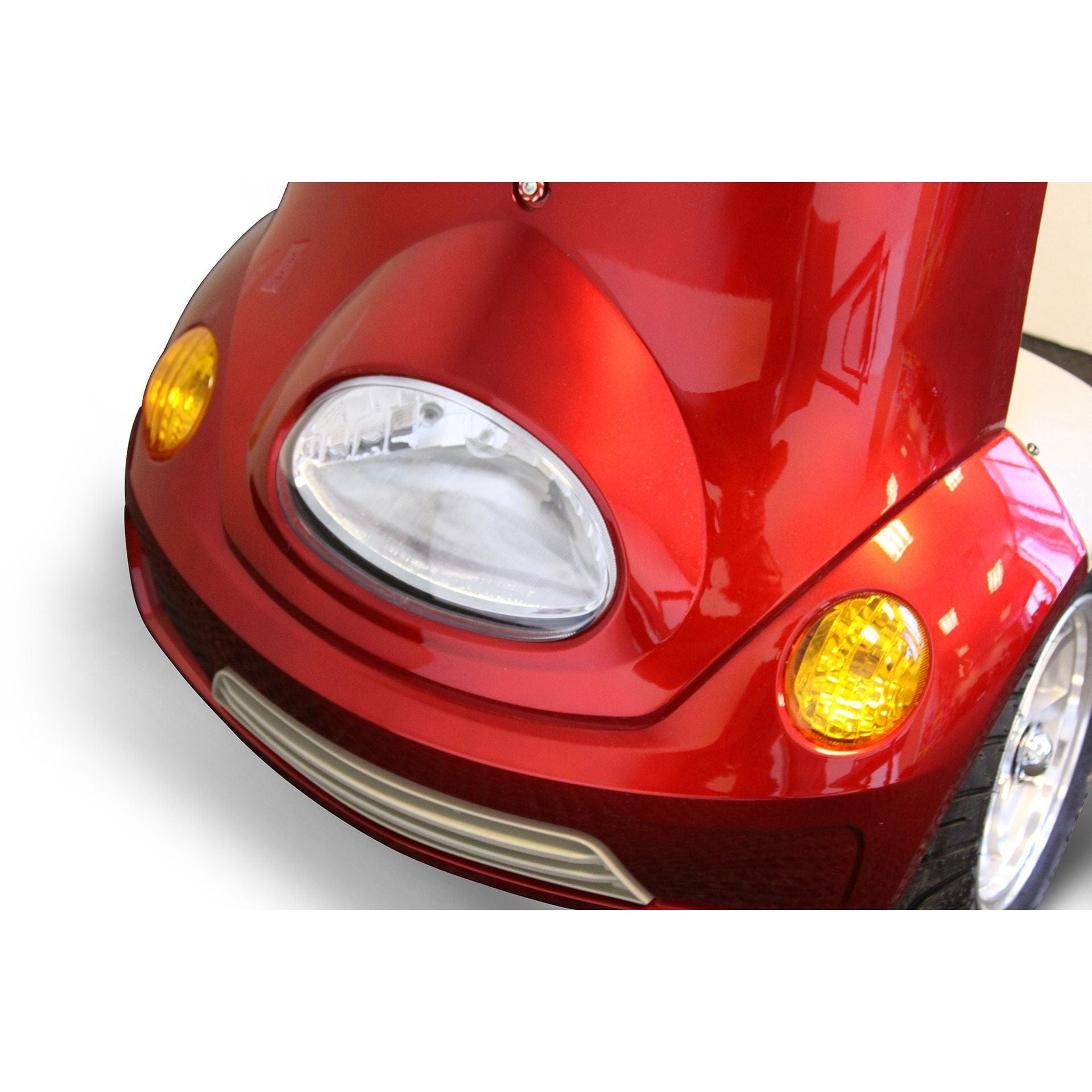

Motor Headlight: 12V Bulb

Rear lights: 12V Bulb

Carton Size: Shipped Fully assembled on Pallet – 80”x36”x73” (LxWxH)

Scooter Weight: 312lbs. with batteries

Battery Indicator: Yes

Front: Front Shock Absorbers

Rear: Rear Shock Absorbers

Reflectors: Yes

Warranty:

 Comes with manufacturer warranty as follows

3 Year Warranty

• Platform (Part of frame)
• Seat Post
• Frame

1 Year Warranty

• Electronic Components

6 Month Warranty

• Batteries

Resources:

Owner's Manual Link
